Description

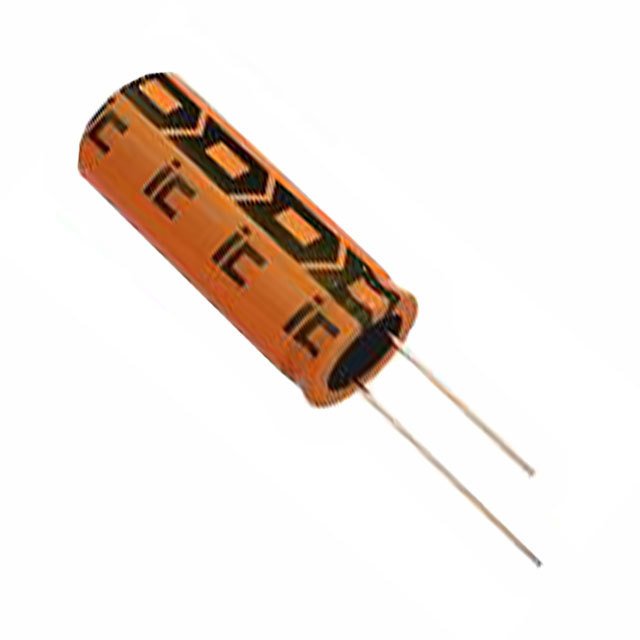

Illinois Capacitor Inc 477RZM035M1615 Capacitor 470MF 35V 20% 105C
Product Attributes
Categories Capacitors
Aluminum Electrolytic Capacitors
Manufacturer Illinois Capacitor
Series RZM
Packaging Bulk
Part Status Active
Capacitance 470µF
Tolerance ±20%
Voltage – Rated 35V
ESR (Equivalent Series Resistance) 494mOhm @ 120Hz
Lifetime @ Temp. 3000 Hrs @ 105°C
Operating Temperature -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Impedance 330 mOhms
Lead Spacing 0.295″ (7.50mm)
Size / Dimension 0.630″ Dia (16.00mm)
Height – Seated (Max) 0.650″ (16.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
| Physical Specifications | |
| Diameter (D): Length (L): Lead Wire Diameter (d): Lead Spacing: Lead Length: Coating: |
16mm + 0.5mm 15 mm + 1.5 mm 0.8 mm + 0.05 mm 7.5 mm +/- 0.5 mm 15 mm BROWN PVC Sleeving |
Manufacturer:
Datasheet: Datasheet
