Description

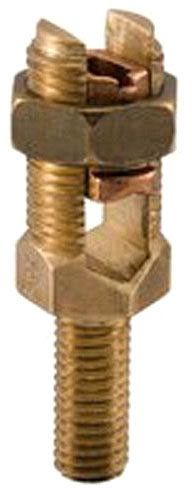

Service Post Connector; Conductor Size 10 to 2 AWG Solid, 10 to 3 AWG Stranded; Number of Conductors 2; Stud Diameter 3/8 Inch-16 TPI; Stud Length 5/8 Inch; Body Hex Size 5/8 Inch; Nut Hex Size 25/32 Inch; Material Bronze; Standard Package 50; Approval UL 8M24, UL 486A/B, UL 467, CSA; Used On Cable to Steel Structure/Bus Bar/Fence Post; ROHS Compatible; Conductor Diameter 0.102 to 0.271 InchSpecification
UNSPSC 39121700
Model SPDS
Brand ILSCO[R]
Additional Information CONDUCTOR DIAMETER 0.271 TO 0.102 INCH
Conductor Size 10 TO 2 AWG SOLID, 10 TO 3 AWG STRANDED
Number of Conductors 2
Stud Diameter 3/8 INCH-16 TPI
Stud Length 5/8 INCH
Body Hex Size 5/8 INCH
Nut Hex Size 25/32 INCH
Material BRONZE
Standard Package 50
Approval UL 8M24, UL 486A, UL 486B, UL 467, CSA
Used On CABLE TO STEEL STRUCTURE/BUS BAR/FENCE POST
Country of origin: MEX
Manufacturer:Electronic Components
Datasheet:SPD-connector.PDF
