Description

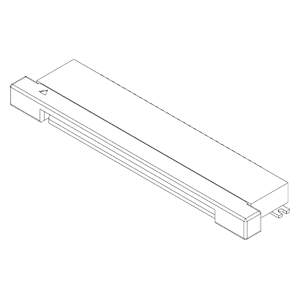

IMSA-9632S-30Y801 Iriso Electronic FFC Connector 50V 0.5A 0.5 Pitch 14 Pin Product number: IMSA-9632S-30Z02-GFN4 RoHS
Specifications
Connecting Type Socket
PCB Mounting Methods SMT
Connector Orientation RightAngle
Contact Direction BottomContact
Pitch 0.5 Pitch
Solder Tail Pitch 0.5 Pitch
Pin Counts 30 Pin
Contact Plating Gold
Plating Thickness 0.1 m Min.
Signal Spec Signal Transmission Speed
Length (Pitch Direction) 20.6 mm
Width (Depth) 4.9 mm
Height 1.8 mm
Rated Voltage (AC) 50 V
Rated Voltage (DC) 50 V
Rated Current 0.5 A
Withstand Voltage 250 V(AC)
Operating Temperature Range (Max.)105C
Operating Temperature Range (Min.)-40C
Array Sigle Row
RoHS2 Yes
Halogen Free No
2-Point Contact No
Boss/Locator No
Ground Terminal No
Wide Slider Durability
Locks
ZIF
Card (FPC) Retention MechanismNo
Packaging Type Emboss
Package Quantity 3000
Manufacturer:Electronic Components
Datasheet:is-9632z01-1.pdf
