Description

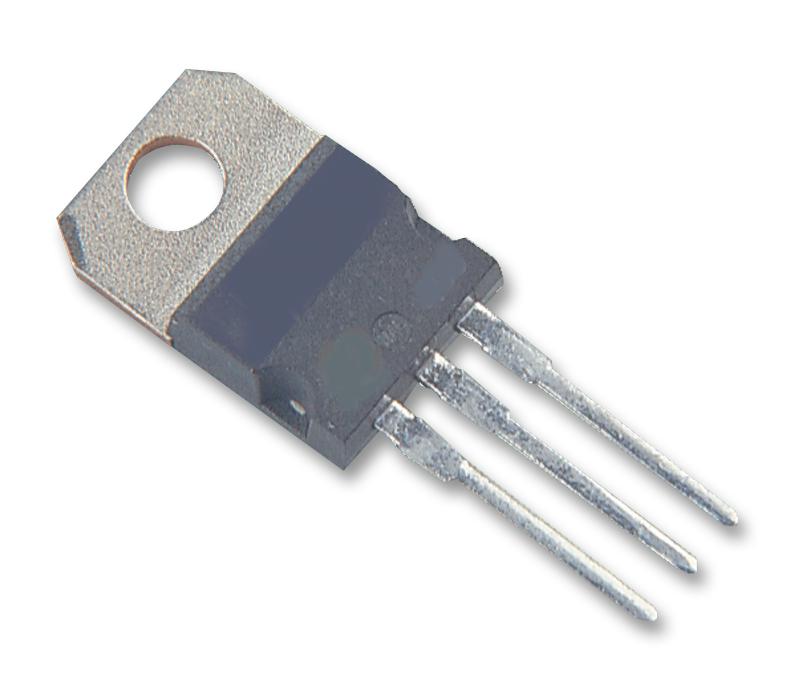

Infineon Technologies IPP60R060P7XKSA1 Transistor MOSFET N-CH 600V 48A 164W Through Hole 3-Pin TO-220 Tube RoHS
Specifications
Manufacturer: Infineon
Product Category: MOSFET
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-220-3
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds – Drain-Source Breakdown Voltage: 600 V
Id – Continuous Drain Current: 48 A
Rds On – Drain-Source Resistance: 49 mOhms
Vgs – Gate-Source Voltage: – 20 V, + 20 V
Vgs th – Gate-Source Threshold Voltage: 3 V
Qg – Gate Charge: 67 nC
Minimum Operating Temperature: – 55 C
Maximum Operating Temperature: + 150 C
Pd – Power Dissipation: 164 W
Channel Mode: Enhancement
Tradename: CoolMOS
Packaging: Tube
Configuration: Single
Series: CoolMOS P7
Transistor Type: 1 N-Channel
Brand: Infineon Technologies
Fall Time: 4 ns
Product Type: MOSFET
Rise Time: 12 ns
Factory Pack Quantity: 500
Subcategory: MOSFETs
Typical Turn-Off Delay Time: 79 ns
Typical Turn-On Delay Time: 23 ns
Part # Aliases: IPP60R060P7 SP001658410
Unit Weight: 0.068784 oz
Manufacturer: Infineon Technologies
MFG Part #: IPP60R060P7XKSA1
