Description

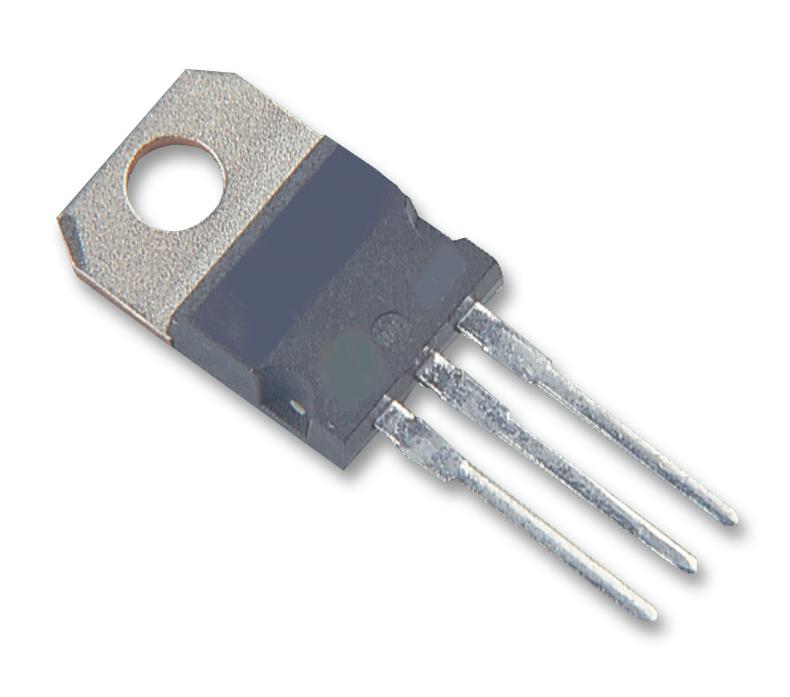

ISC IRF530A Transistor MOSFET N-Channel 100 V 0.11 Ohm Flange Mount Advanced Power Mosfet TO-220-3 RoHS
100V, 14A, TO-220, Transistor Polarity:N Channel, Continuous Drain Current Id:14A, Drain Source Voltage Vds:100V, On Resistance Rds(on):110mohm, Rds(on) Test Voltage Vgs:100V, Threshold Voltage Vgs:2V, No. of Pins:3, RoHS
^FET TypeMOSFET N-Channel, Metal Oxide
^FET FeatureStandard
Drain to Source Voltage (Vdss)100V
^Current – Continuous Drain (Id) @ 25C 14A (Tc)
^Rds On (Max) @ Id, Vgs110 mOhm @ 7A, 10V
^Vgs(th) (Max) @ Id4V @ 250uA
^Gate Charge (Qg) @ Vgs 36nC @ 10V
^Input Capacitance (Ciss) @ Vds 790pF @ 25V
^Power – Max 55W
^Mounting Type Through Hole
^Package / Case TO-220-3
^Supplier Device Package TO-220
Manufacturer:Electronic Components
Datasheet:IRF530A.pdf
