Description

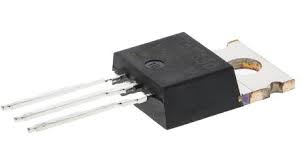

IRF530PBF-BE3 Vishay Transistor N-Channel 100V 14A 88W Through Hole TO-220AB RoHS
Specifications
Manufacturer: Vishay
Product Category: MOSFET
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-220AB-3
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds – Drain-Source Breakdown Voltage: 100 V
Id – Continuous Drain Current: 14 A
Rds On – Drain-Source Resistance: 160 mOhms
Vgs – Gate-Source Voltage: – 20 V, + 20 V
Vgs th – Gate-Source Threshold Voltage: 4 V
Qg – Gate Charge: 26 nC
Minimum Operating Temperature: – 55 C
Maximum Operating Temperature: + 175 C
Pd – Power Dissipation: 88 W
Channel Mode: Enhancement
Packaging: Tube
Configuration: Single
Brand: Vishay / Siliconix
Forward Transconductance – Min: 5.1 S
Fall Time: 24 ns
Product Type: MOSFET
Rise Time: 34 ns
Factory Pack Quantity: 1000
Subcategory: MOSFETs
Typical Turn-Off Delay Time: 23 ns
Typical Turn-On Delay Time: 10 ns
Part # Aliases: IRF530PBF
Unit Weight: 0.068784 oz
Manufacturer: Vishay
MFG Part #: IRF530PBF-BE3
