Description

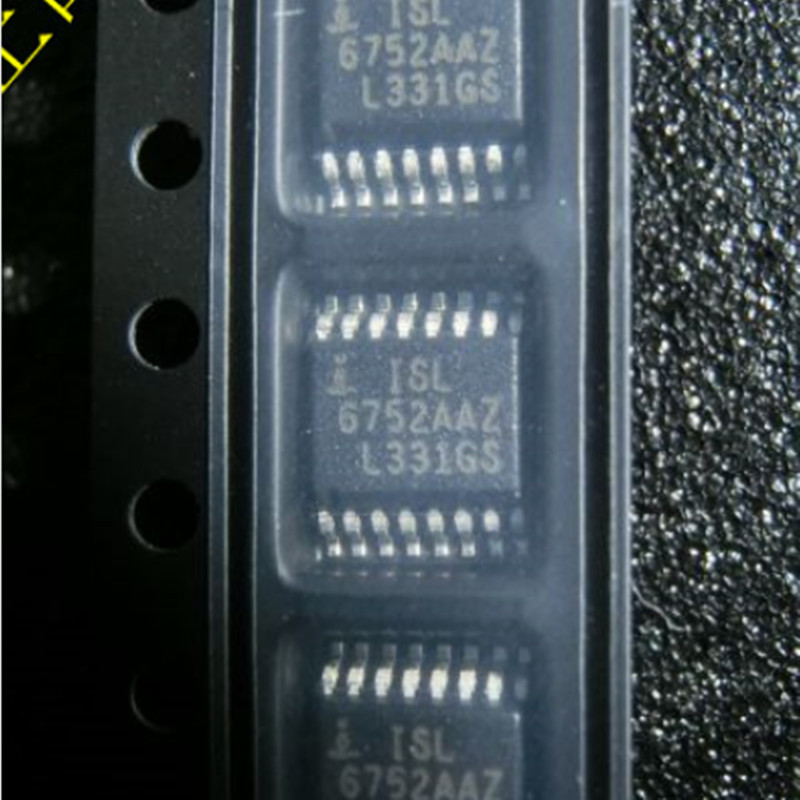

ISL6752AAZA-T Renesas / Intersil Full-Bridge Regulator Positive, Isolation Capable Output Step-Up/Step-Down – DC-DC Controller IC PWM 100mA 16-Pin QSOP W T/R RoHS
Specifications
Manufacturer: Renesas Electronics
Product Category: Switching Controllers
Mounting Style: SMD/SMT
Package / Case: QSOP-16
Packaging: Reel
Brand: Renesas / Intersil
Height: 1.47 mm
Length: 4.9 mm
Moisture Sensitive: Yes
Product Type: Switching Controllers
Series: ISL6752
Reel:2500
Subcategory: PMIC – Power Management ICs
Type: Current Mode PWM Controllers
Width: 3.9 mm
Unit Weight: 0.002822 oz
The ISL6752 is a high-performance, low-pin-count alternative zero-voltage switching (ZVS) full-bridge PWM controller. Like Intersil’s ISL6551, it achieves ZVS operation by driving the upper bridge FETs at a fixed 50% duty cycle while the lower bridge FETs are trailing-edge modulated with adjustable resonant switching delays. Compared to the more familiar phase-shifted control method, this algorithm offers equivalent efficiency and improved overcurrent and light-load performance with less complexity in a lower pin count package. This advanced BiCMOS design features precision deadtime and resonant delay control, and an oscillator adjustable to 2MHz operating frequency. Additionally, Multi-Pulse Suppression ensures alternating output pulses at low duty cycles where pulse skipping may occur.
Key Features
Adjustable Resonant Delay for ZVS Operation
Synchronous Rectifier Control Outputs with Adjustable Delay/Advance
Current-Mode Control
3% Current Limit Threshold
Adjustable Deadtime Control
175µA Start-up Current
Supply UVLO
Adjustable Oscillator Frequency Up to 2MHz
Internal Over-Temperature Protection
Buffered Oscillator Sawtooth Output
Fast Current Sense to Output Delay
Adjustable Cycle-by-Cycle Peak Current Limit
70ns Leading Edge Blanking
Multi-Pulse Suppression
Pb-Free (RoHS Compliant)
Manufacturer Part Number: ISL6752AAZA-T
Manufacturer: Intersil
