Description

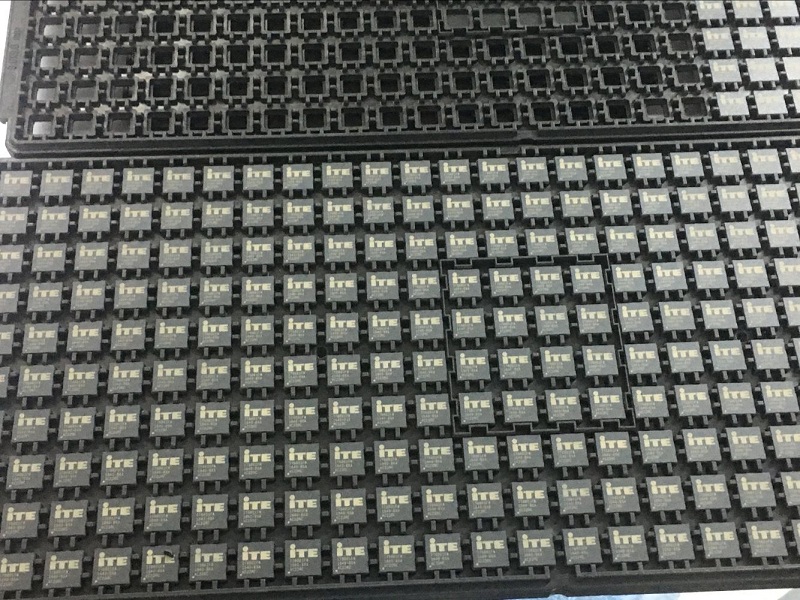

The IT6663FN is a one-to-two HDMI2/MHL dual-in, HDMI2 out active splitter that supports a signaling rate up to 6.0Gbps per channel. It is compatible with the latest HDMI 2.0a, MHL 2.2, and HDCP2.2 specifications. The 6.0Gbps bandwidth capability of IT6663 allows it to support content stream such as the popular ultra-high definition 4Kx2K 60Hz format, 3D video with 4Kx2K@30Hz, and so on. SCDC data structure is contained in both TX and RX side of IT6663 such that HDMI2.0 content could be properly received and transmitted to downstream side.
Active source and sink detection for auto low power state implementation
Embedded CEC/RCP hardware
Disconnectable input terminations with auto-calibrated impedances
Adaptive input equalization supporting long and short cables at the same time
Programmable TMDS output current level
Programmable source terminations compliant with HDMI 2.0 standard, providing optimal source data eyes at high speeds
88-Pin QFN package
Manufacturer:Electronic Components
Datasheet:IT6663.pdf
