Description

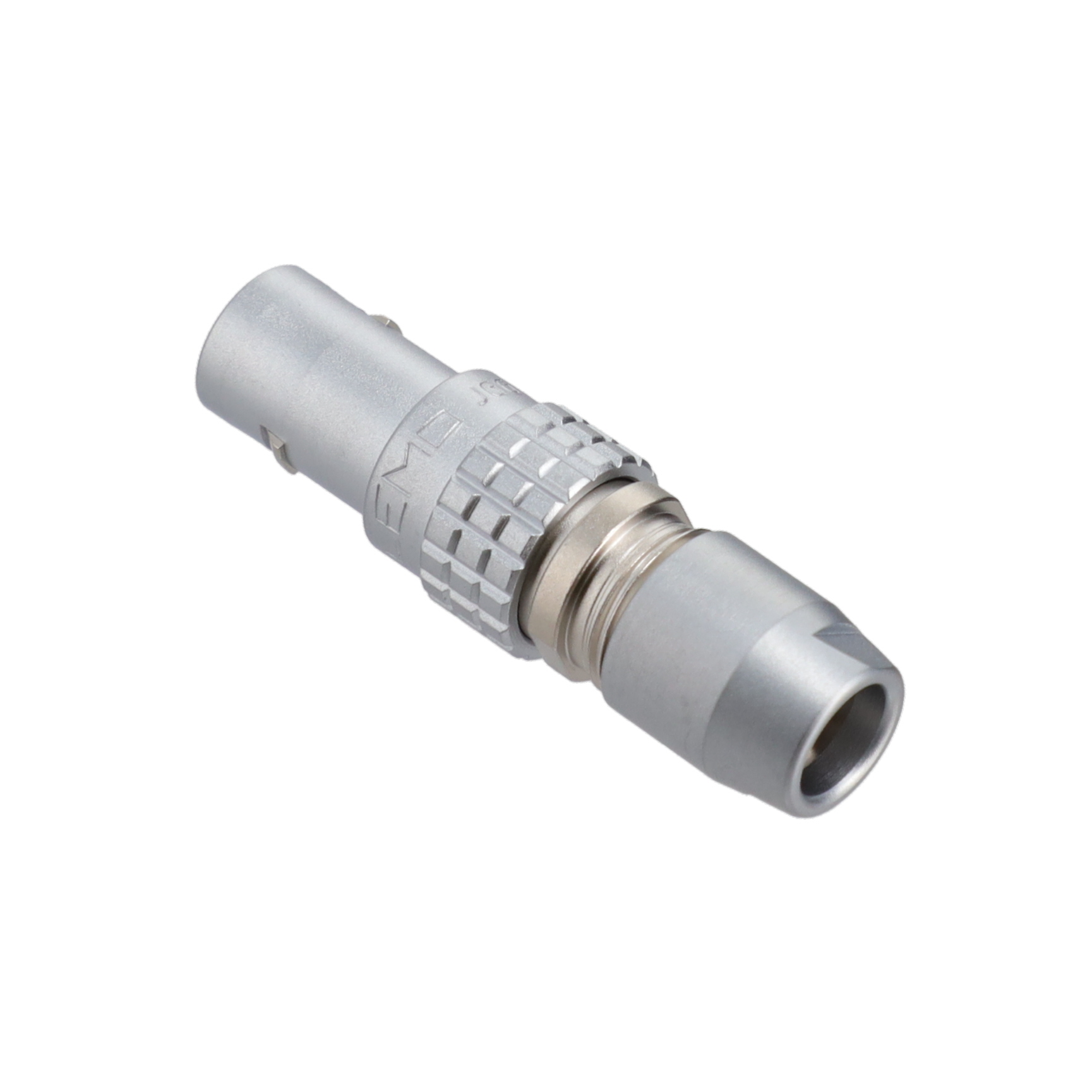

JGG.0B.304.CLAD52 Lemo Push-Pull, Detent Lock Metal Connector Plug, Male Pins 4 Position 7A 0.165″ ~ 0.205″ (4.20mm ~ 5.20mm) IP66/IP68 – Dust Tight, Water Resistant, Waterproof Free Hanging (In-Line) Shielded UL94 V-0 Backshell Solder Cup
Color: Silver
Shielding: Shielded
Type: Circular Connector Assemblies
Primary Material: Metal
Shell Material: Metal
Shell Finish Material: Brass
Mating Contact Finish: Gold
Ingress Protection:IP66/IP68 – Dust Tight, Water Resistant, Waterproof
Connector Type: Plug, Male Pins
Number of Positions: 4
Shell Size – Insert: 4
Orientation: G
Current Rating: 7A (Amps)
Termination: Solder Cup
Mounting Feature:
Mounting Type: Free Hanging (In-Line)
Fastening Type: Push-Pull, Detent Lock
Manufacturer Part Number: JGG.0B.304.CLAD52
Manufacturer: Lemo
Datasheet: Datasheet
