Description
KA78R15CTU onsemi / Fairchild LDO Voltage Regulators 1A Fixed 15V Positive 1 Output TO-220F-4L RoHS
Specifications
Manufacturer: onsemi
Product Category: LDO Voltage Regulators
Mounting Style: Through Hole

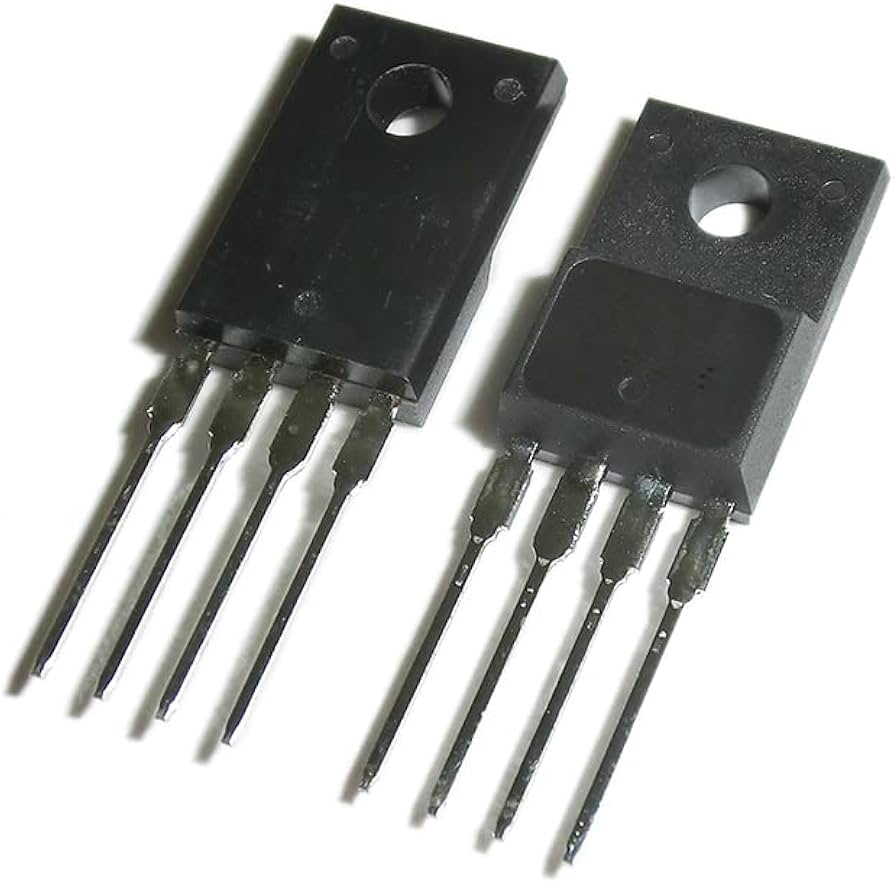

Package / Case: TO-220-4
Output Voltage: 15 V
Output Current: 1 A
Number of Outputs: 1 Output
Polarity: Positive
Quiescent Current: 10 mA
Input Voltage, Min: 16 V
Input Voltage, Max: 30 V
Output Type: Fixed
Minimum Operating Temperature: – 20 C
Maximum Operating Temperature: + 80 C
Dropout Voltage: 500 mV
Series: KA78R15C
Packaging: Tube
Brand: onsemi / Fairchild
Dropout Voltage – Max: 500 mV
Height: 9.2 mm
Length: 10 mm
Line Regulation: 2.5 %
Load Regulation: 2 %
Pd – Power Dissipation: 15 W
Product Type: LDO Voltage Regulators
Reel:1000
Subcategory: PMIC – Power Management ICs
Width: 4.5 mm
Part # Aliases: KA78R15CTU_NL
Unit Weight: 0.099790 oz
