Description

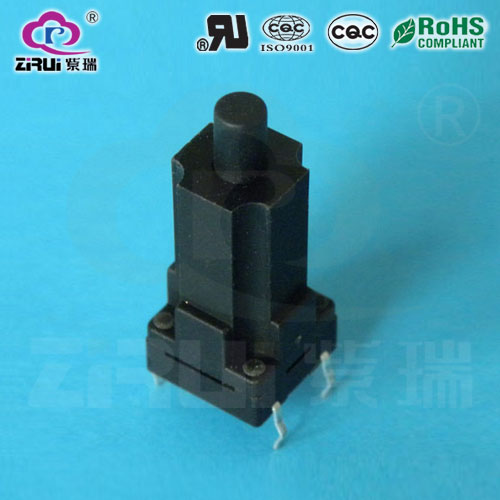

Waterproof Tact Switch KANF1001-23.2-3.5 Surface Mount Tact with 50mA, 12V DC Rating
Model: KANF1010-23.2
2- Contact Resistance : ?5
3- Insulation Resistance: ?100M
4- Dielectric Strength : AC500V(50/60Hz for 1minute)
5- Electrically Life:?5,000cycles
6- Salt spraying test:?24H
7- Operating Force:1.76 0.2/ 2.56 0.2N
8.-Travel:0.25 0.10mm
9.-Weldability Test: :?85%
Manufacturer:Electronic Components
Datasheet:Others/KANF1001-23.2mm.pdf
