Description

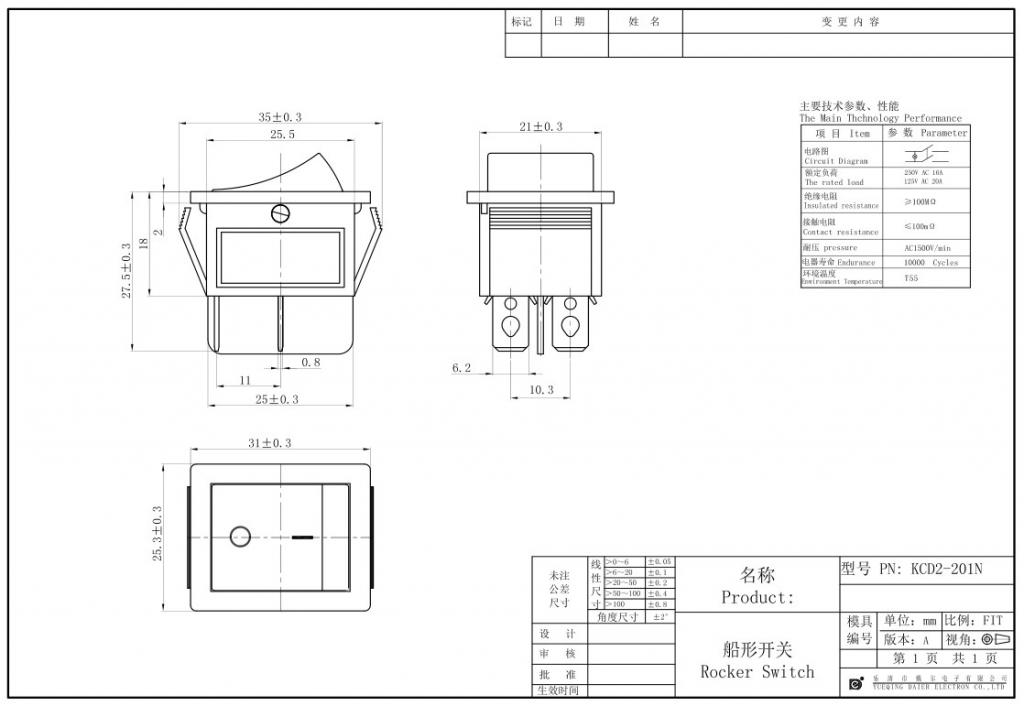

KCD2-201NB Daier Power Rocker Switch With Red Light 30A 250VAC Electric Oven Electric Heater Button Switch 4Pin 2 Position Blue RoHS
Daier KCD2-201N 20A illuminated rocker switch offer a high switching current in a compact design.
Daier offer red, yellow, blue and green colors with 12V, 24V, 110V and 220V voltage and so on.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
Housing: Nylon 66 Button: Nylon 66
Terminal: Brass with sliver plated Button color: Standard red,green,yellow and blue is avaliable
Rating: 20A 125VAC/15A 250VAC Housing color: Standard black,white is avaliable
Contact & Operation: DPST,ON-OFF Lamp Voltage: 220V/120V/12V/24V
Contact Resistance: 35mOhm max Operating Temperature: -25C~+85C
Insulation Resistance: 100mOhm min (500VDC) Electrical Life: >= 10,000 Cycles
Dielectric strength: 1500VAC 1 minute Mechanical Life: >= 100,000 Cycles
Certification: CE, CQC, TUV, SGS OEM or ODM: Available
