Description

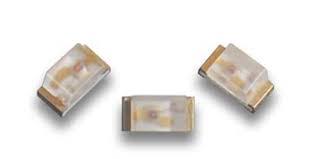

Kingbright KPT-1608SGC Green LED, 568 nm, 1608 (0603), Rectangle Lens SMD Package RoHS
The SMT Chip LED 0603 range, from Kingbright, are a series of LEDs in the industry standard 0603 package. With their low power consumption and wide viewing angle, the Chip LED 0603 LEDs are suitable for optical indicators, display backlighting, floor marker lighting or toys.
The KPT-1608SGC from Kingbright is a surface mount super bright green colour rectangular chip LED. This device made of gallium phosphide green light emitting diode which can operate with wide viewing angle and low power consumption.
- Standard size of 1.6mm x 0.8mm SMT LED, 0.75mm thickness
- Luminous intensity of 12mcd at 20mA
- Viewing angle is 120°
- Forward voltage is 2.2V
- Forward current (If) is 20mA
- Dominant wavelength is 568nm at IF=20mA
- Peak wavelength is 565nm at IF=20mA
- Water clear lens type
Applications
LED Lighting; Portable Devices; Industrial; Consumer Electronics
Specifications
LED Colours Green
Package Type 1608 (0603)
Mounting Type Surface Mount
Number of LEDs 1
Forward Voltage 2.5 V
Luminous Intensity 12 mcd
Number of Pins 2
Viewing Angle 120 °
Lens Shape Rectangle
Dominant Wavelength 568 nm
Dimensions 1.6 x 0.8 x 0.75mm
Lens Colour Clear
LED Material GaP
Manufacturer:Kingbright
Datasheet:KingBright/KPT-1608.pdf
