Description

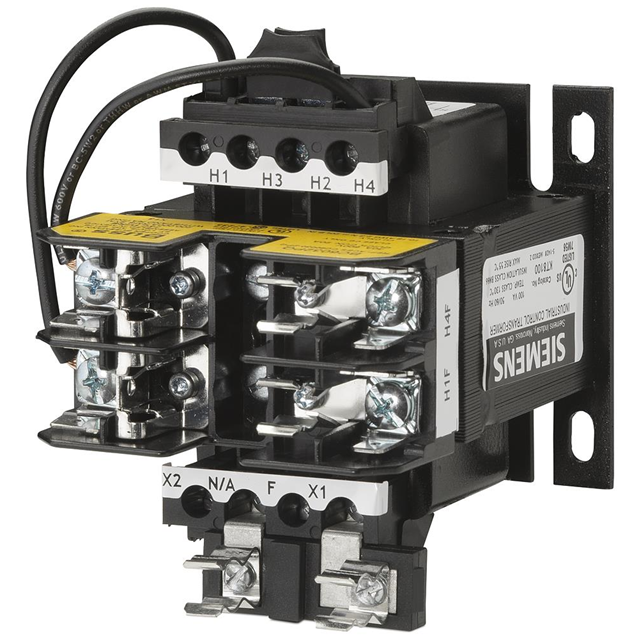

US2:KT9100 Siemens Control Power Transformer Kit, Class KT, 600 VAC Primary, 120 VAC Secondary, 100 VA Power, 50/60 Hz Frequency, 1 ph, Screw Terminal Connection, Surface Mounting, Open Enclosure, -4 to 104 deg F, 4 in H x 3.31 in W x 4.11 in D Dimensions
Specifications
Item Number KT9100
Brand Siemens Electrical
Conductor material Other
Height 6 IN
Length 7 IN
Primary voltage 1 600 V
Rated power 100 kW
Secondary voltage 1 120 V
Weight 4.990 LB
Width 6 IN
Primary Voltage: 600V
Secondary Voltage – (Full Load): 120V
Max Power: 100VA
Center Tap: No
Termination Style: Terminal Block
Size : 104.39mm L x 84.07mm W
Mounting Type: Chassis Mount
Secondary Voltage 115 V
Terminal Type SCREW
Mounting PANEL
Power Rating in VA 100
Primary Voltage 575 V
Additional Information INCLUDES 2 POLE PRIMARY FUSE BLOCK, CLASS CC REJECTION TYPE CURRENT LIMITING FUSE, 1 POLE SECONDARY K TYPE FUSE BLOCK WITH 13/32 INCH X 1-1/2 INCH FUSE
Applicable Standard NEMA 1
Power Rating 100 VA
