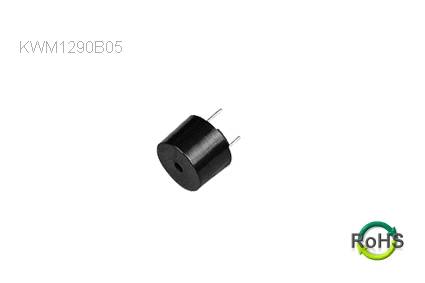

Kingwei Electronic Co.,Ltd. Magnetic Buzzer KWM1290B05
^Magnetic Buzzer External Drive Type
^Product Feature
^Product ID:KWM1290B05
^Rated Voltage:5V
^Operating Voltage:4~8V
^Max.Rated Current:40mA
^Resonant Frequency:2400Hz
^Min.Sound Pressure Level:85dB/10cm
^Coil Ressistance(DC):455O
^Coil Impedance(AC):80O
^Operating Temperature:-20~+70C
^D(mm):12
^H(mm):9
^weight:2g
Manufacturer:Electronic Components
Datasheet:KWM1290B05.pdf
