Description

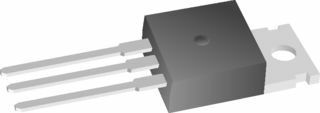

L7809CV ST IC Standard Regulator Lin Fix Pos 9V 1.5A 3-Pin (3+Tab) TO-220
STMicroelectronics – Sgs 7809CV Voltage Regulator IC; Voltage Regulator Type:Precision; Input Voltage Primary Max:35V; Output Voltage Max:9V; Output Current Max:1.5A; Dropout Voltage, Vdo:2V; Supply Voltage Max:35V; Termination Type:Through Hole
Manufacturer Part Number: L7809CV
Product Category: Linear Voltage Regulators
Series: L78
Mounting Style: Through Hole
Package / Case: TO-220
Number of Outputs: 1 Output
Polarity: Positive
Output Voltage: 9 V
Output Current: 1.5 A
Output Type: Fixed
Input Voltage – Min: 11 V
Input Voltage – Max: 35 V
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 125 C
Quiescent Current: 4.3 mA
Packaging: Tube
Brand: STMicroelectronics
Country of Assembly: Not Applicable
Country of Diffusion: Not Applicable
Country of Origin: SG
Line Regulation: 90 mV
Load Regulation: 100 mV
Product Type: Linear Voltage Regulators
PSRR / Ripple Rejection – Typ: 55 dB
Subcategory: PMIC – Power Management ICs
Manufacturer: STMicroelectronics
