Description

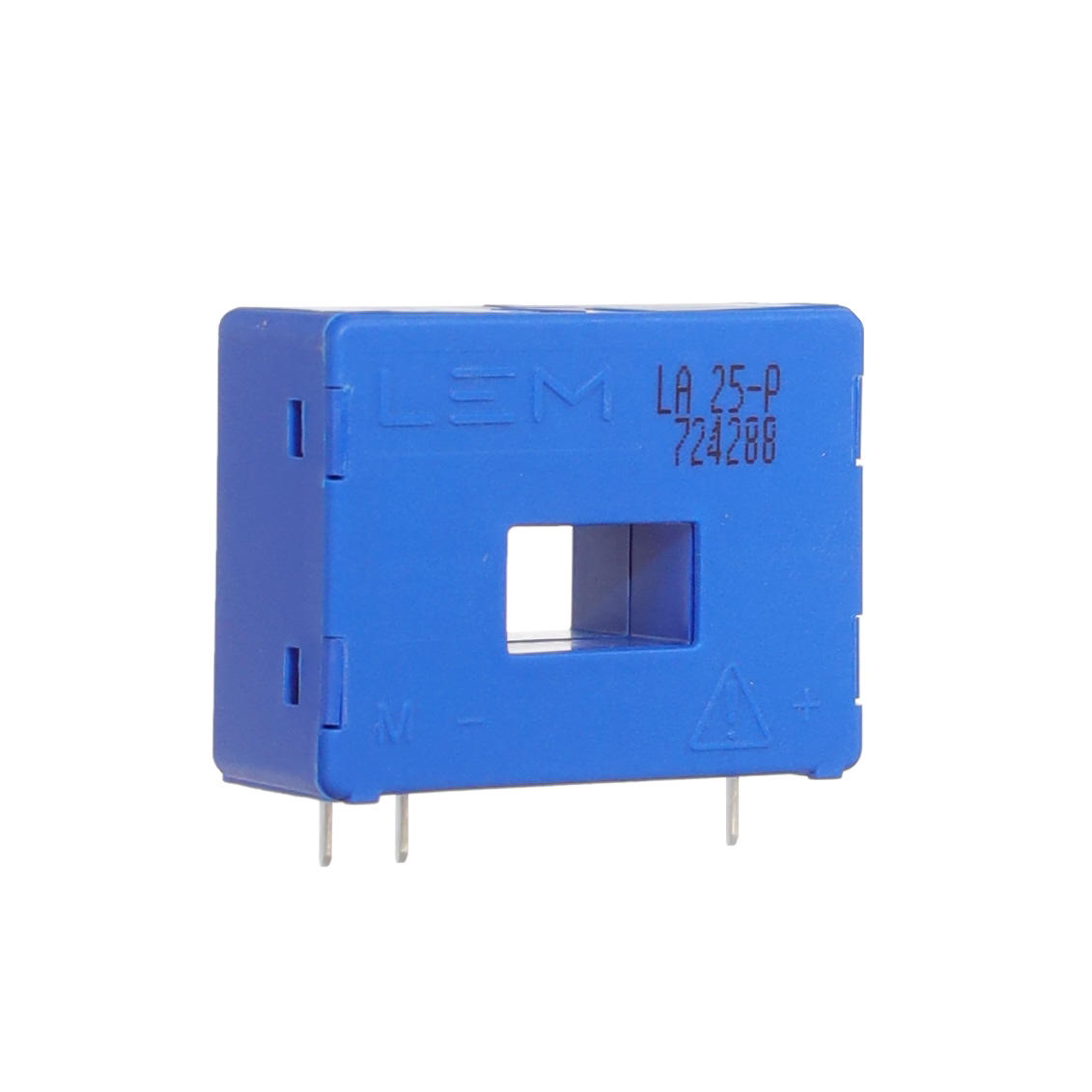

LA 25-P LEM Bidirectional Hall Effect, Closed Loop AC/DC Current Sensor ±12V ~ 15V 10mA ±0.91% 1µs Ratiometric, Current Module, Single Pass Through Through Hole
Sensor Type: Hall Effect, Closed Loop
For Measuring: AC/DC
Current – Sensing: 25A
Accuracy: ±0.91%
Sensitivity:Ratiometric, Current
Supply Current (Max): 10mA
Supply Voltage: ±12V ~ 15V
Response Time: 1µs
Polarization: Bidirectional
Number of Channels: 1
Frequency: DC ~ 200kHz
Linearity: ±0.15%
Package / Case: Module, Single Pass Through
Mounting Type: Through Hole
Manufacturer Part Number: LA 25-P
Manufacturer: LEM USA Inc.
Datasheet: la_25-p.pdf
