Description

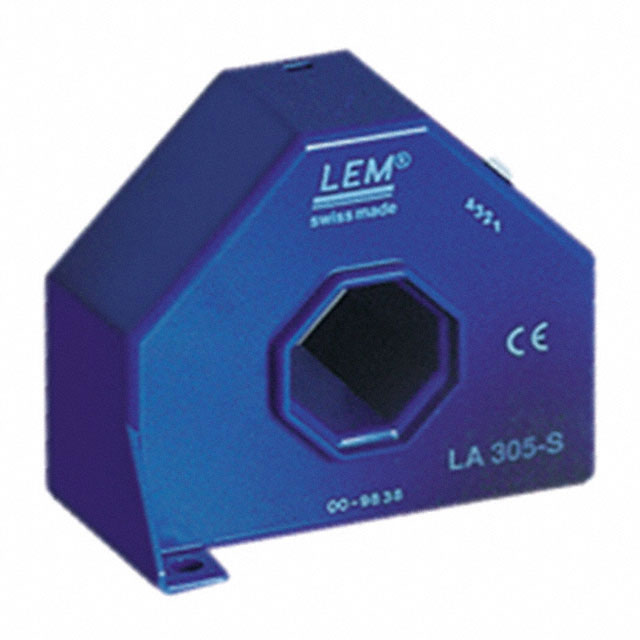

LA 305-S LEM Bidirectional Hall Effect, Closed Loop AC/DC Current Sensor ±12V ~ 15V 140mA ±0.8% 1µs Ratiometric, Current Module Chassis Mount
Sensor Type: Hall Effect, Closed Loop
For Measuring: AC/DC
Current – Sensing: 300A
Accuracy: ±0.8%
Sensitivity:Ratiometric, Current
Supply Current (Max): 140mA
Supply Voltage: ±12V ~ 15V
Response Time: 1µs
Polarization: Bidirectional
Number of Channels: 1
Frequency: DC ~ 100kHz
Linearity: ±0.1%
Package / Case: Module
Mounting Type: Chassis Mount
Manufacturer Part Number: LA 305-S
Manufacturer: LEM USA Inc.
Datasheet: la 305-s.pdf
