Description

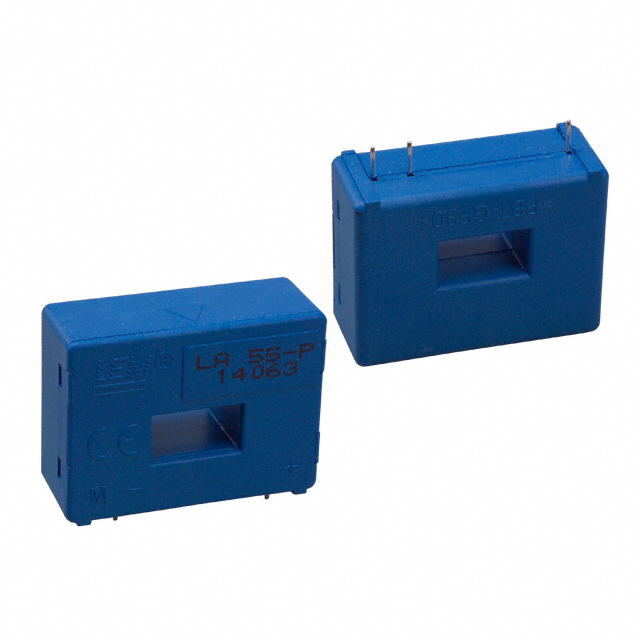

LA 55-P LEM Bidirectional Hall Effect, Closed Loop AC/DC Current Sensor ±12V ~ 15V 60mA ±0.65% 1µs Ratiometric, Current Module, Single Pass Through Through Hole
Sensor Type: Hall Effect, Closed Loop
For Measuring: AC/DC
Current – Sensing: 50A
Accuracy: ±0.65%
Sensitivity:Ratiometric, Current
Supply Current (Max): 60mA
Supply Voltage: ±12V ~ 15V
Response Time: 1µs
Polarization: Bidirectional
Number of Channels: 1
Frequency: DC ~ 200kHz
Linearity: ±0.15%
Package / Case: Module, Single Pass Through
Mounting Type: Through Hole
Manufacturer Part Number: LA 55-P
Manufacturer: LEM USA Inc.
Datasheet: la_55-p_v19.pdf
