Description

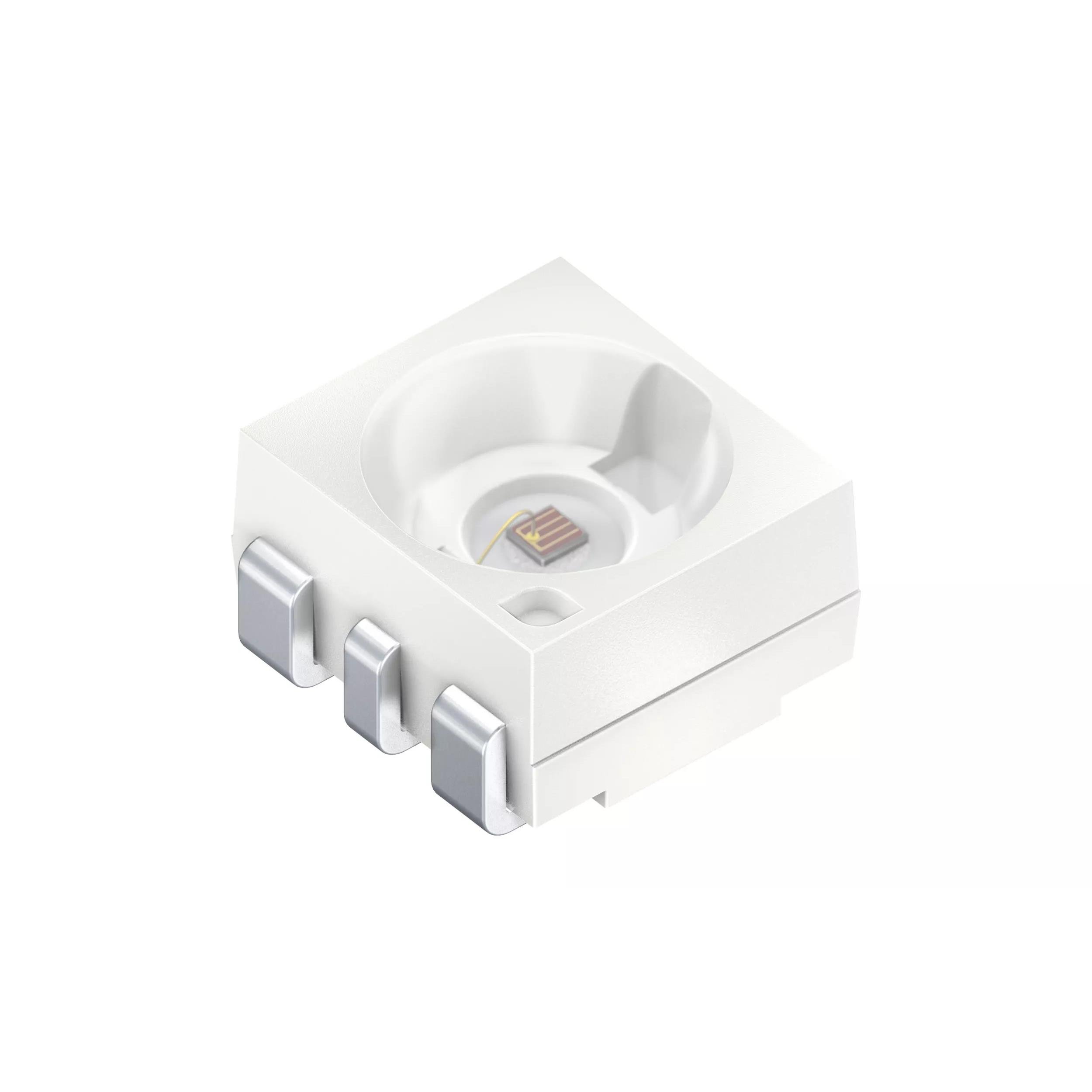

LA G6SP.02-U2AA-1-A3D3+7E6F-24-G3R3-A-S Osram Amber LED 2.2V 140mA Clear 11500mcd, Colorless 618nm-624nm Surface Mount 6-SMD, J-Lead
Series: Advanced Power TOPLED®
Color: Amber
Lens Color: Colorless
Lens Transparency: Clear
Lens Style: Round with Flat Top
Lens Size: 2.40mm Dia
Voltage Forward (Vf) (Typ): 2.2V
Current: 140mA
Mounting Type: Surface Mount
Dominant Wavelength: 618nm
Peak Wavelength: 624nm
Configuration:
Size / Dimension: 3.20mm L x 1.00mm W
Height (Max): 2.10mm
Device Package: 6-SMT
