Description

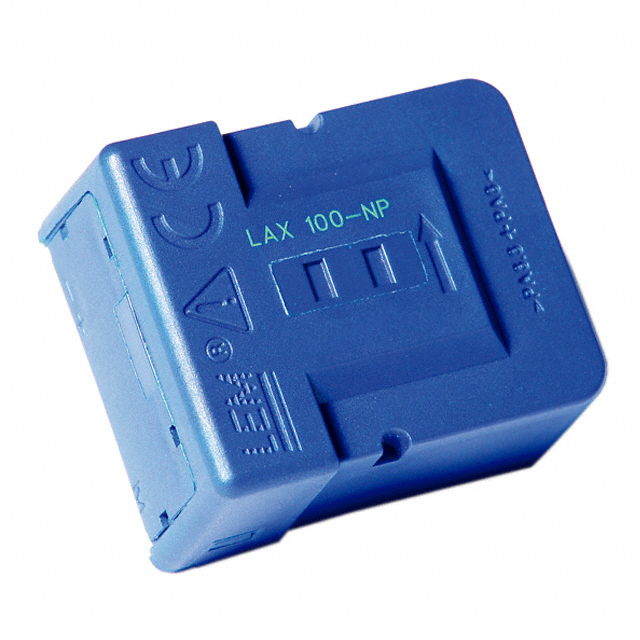

LAX 100-NP LEM Bidirectional Hall Effect, Closed Loop AC/DC Current Sensor ±11.4V ~ 15.75V 62mA 0.5mA/A ±0.91% 0.2µs Ratiometric, Current Module Through Hole
Sensor Type: Hall Effect, Closed Loop
For Measuring: AC/DC
Current – Sensing: 16.7A, 25A, 33.3A, 50A, 100A (Selectable)
Accuracy: ±0.91%
Sensitivity:Ratiometric, Current
Supply Current (Max): 62mA
Supply Voltage: ±11.4V ~ 15.75V
Response Time: 0.2µs
Polarization: Bidirectional
Number of Channels: 1
Frequency: DC ~ 300kHz
Linearity: ±0.1%
Package / Case: Module
Mounting Type: Through Hole
Manufacturer Part Number: LAX 100-NP
Manufacturer: LEM USA Inc.
Datasheet: lax%20100-np%20e.pdf
