Description

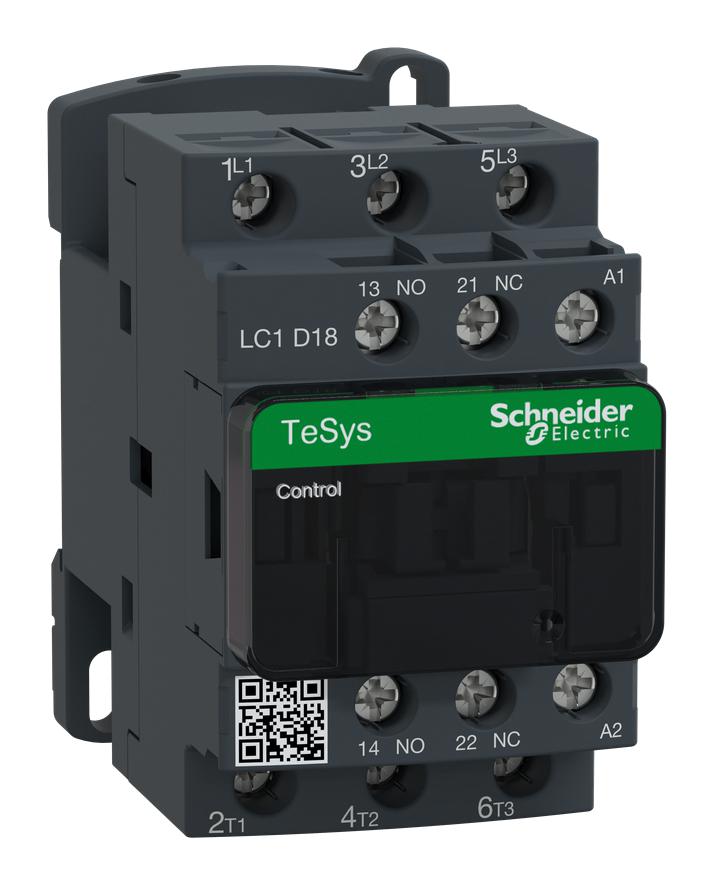

Square D LC1D18M7 Schneider Electric TeSys D IEC Contactor, Non-Reversing, Screw Clamp Connection, 18A Inductive, 32A Resistive, 220 Vac Coil, 3NO
ManufacturerSquare D (Schneider Electric)
Manufacturer #LC1D18M7
UNSPSC39121529
3-Phase HP Rating (Max.)15 hp
Coil Voltage220 Vac
Connection TypeScrew Clamp
Contact Operation3NO
Contactor TypeNon-Reversing
Poles3-Pole
Single-Phase HP Rating (Max.)3 hp
ECCNEAR99
Country of OriginID – Indonesia
Max. Resistive Amps (AC1)32A
Max. Inductive Amps (AC3)18A
TeSys D IEC non-reversing contactor 18A (AC3), 32A (AC1), 3NO, 220 Vac coil connected by screw clamp terminals.
Include built-in auxiliary contacts
All screw connections have IP20 finger-safe terminals with both North American and International terminal markings
Contactor application: Motor control and Resistive load
Manufacturer:Electronic Components
Datasheet:LC1D18M7.pdf
