Description

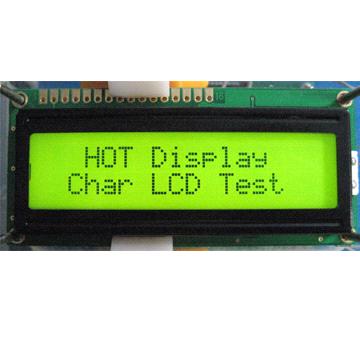

Enrich Electronics LCM1602A LCD module 16 Characters, 2 Lines, 5V with 16-Pin connector Lead free / RoHS: Compliant
This display module has a female single-row connector, making it compatible with several microcontroller development systems. You can use it in your own design, too just provide the appropriate male header pins at standard 0.1″ spacing. This display uses the English/European character table.
2×16-character LCD Specifications
Characters: 16 characters x 2 lines
Module dimensions
(without connector): 80.0 x 36.0 x 12.7 mm
Viewing area: 66.0 x 16.0 mm
Active area: 59.62 x 11.5 mm
Dot size: 0.55 x 0.66 mm
Dot pitch: 0.63 x 0.70 mm
Character size: 3.07 x 5.94 mm
Character pitch: 3.77 x 6.56 mm
LCD type: STN Negative, Blue Transmissive
Duty: 1/16
View direction: 6 o’clock
Backlight type: LED, White
Operating temperature: -20 to +70 C
Storage temperature: -30 to +80 C
Logic Supply Voltage: 5V typical
LCD Supply Voltage: 3.8 to 4.2V (4.0V typical)
Shenzhen Enrich Electronics Co., Ltd is a high tech enterprise, specializing in the customizing of TN, TN, STN, FSTN and other types of LCD for COG and COB module. Enrich Electronics’ products apply for medical electronics, instrumentation, smart wearable device, a number of areas of financial POS machine, U shield, ETC electronic tag and home appliances products.
