Description

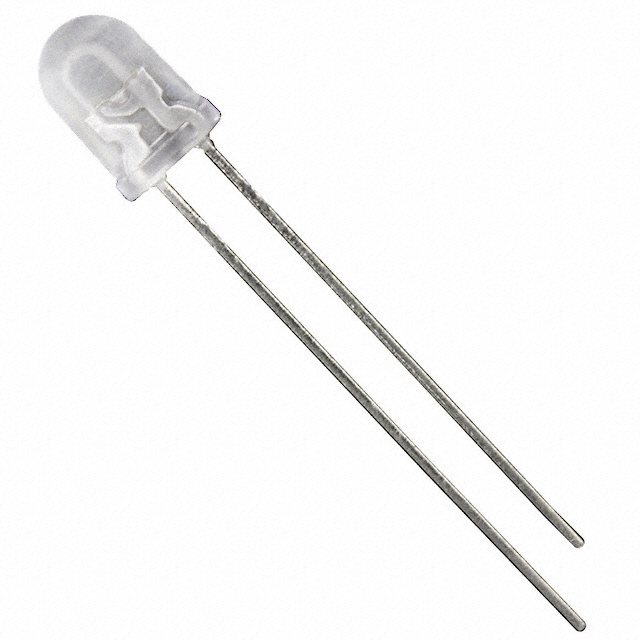

LEDtronics L200TWYG4B LED BiColor Yellow / Green 5MM
T1¾ (5mm) 2-Lead Bicolor Dome LEDs
| T1¾ (5mm) Diffused Dome LEDs |
| Hi-Eff LEDs — 42mm Lead LEDs — Low Current 2mA LEDs |
| High Efficiency (Standard) Intensity Discrete LEDs |
| P/N | Pin 1 | Pin 2 |
| L200TWGR4A (w/ 656nm Spr Red) | G+ | R+ |
| L200TWGR4B (w/ 635nm Hi-Ef Red) | G+ | R+ |
| L200TWYG4B | Y+ | G+ |
| PART NO. (DESCRIPTION) |
MIN BUY | Ιf, mA (typ) |
Ιv, mcd (typ) |
Chip Description |
Vf, V (typ)/(max) |
Lens Type/Color |
λp, nm | Δλ, nm (typ) |
LED Emitting Color |
Viewing Angle‡‡ |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L200TWGR4A ( 7R144RE) |
1000 | 20 | 65 | GaP | 2.2/2.6 | White Diffused | 565nm | 30nm |  Hi-Eff Green |
50° | ||
| 20 | 50 | GaAsP/GaP | 1.8/2.6 | White Diffused | 656nm | 24nm |  Super Red |
50° | ||||
| L200TWGR4B ( 84RE) |
20 | 20 | GaP/GaP | 2.2/2.6 | White Diffused | 568nm | 30nm | Hi-Eff Green |
45° | |||
| 20 | 15 | GaAsP/GaP | 2.0/2.6 | White Diffused | 640nm | 40nm | Hi-Eff Red |
45° | ||||
| L200TWYG4B ( 7R151RE) |
1000 | 20 | 10 | GaAsP/GaP | 2.1/2.6 | White Diffused | 585nm | 36nm |  Yellow |
45° | ||
| 20 | 18 | GaP | 2.2/2.6 | White Diffused | 565nm | 30nm | Hi-Eff Green |
45° | ||||
Manufacturer:Ledtronics
Datasheet:Ledtronics/Dsdd0175.pdf
