Description

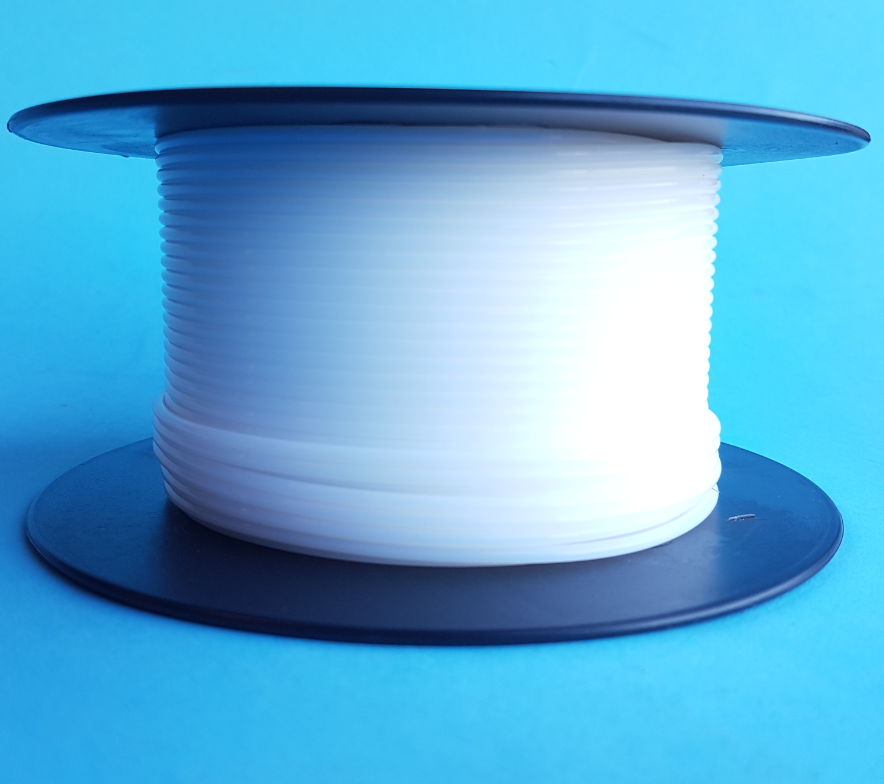

PTFE AWG12L TUBE TFN ID2.16 T0.20 WHITEE3H AWG 12 Light Wall PTFE Tubing
Manufacturer Part Number: PTFE-AWG12L
This PTFE tube AWG-12L has an outside diameter of 2,56 mm (OD) and an inside diameter of 2,16 mm (ID). So the wall thickness is 0.20 mm. Our PTFE tubes are made exclusively from first-class PTFE granulate and no recycled material is added. So we can always guarantee high quality. We also meet the highest demands within the industry in terms of diameter tolerances.
AWG-tubes in PTFE
American Wire Gauge PTFE tubes, abbreviated AWG PTFE tubes, are generally used for electrical insulation applications. The AWG diameter corresponds to the AWG thickness of the power wire. Our AWG hoses can also be ordered in any length with the PTFE tube productgenerator and in addition to the excellent insulating properties, the PTFE tubes have a wide temperature range (-70 °C to +260 °C) are highly resistant to chemicals, weather resistant and non-flammable. In addition, PTFE tubes have no adhesion, very low friction and are UV-resistant (does not age).
Properties of PTFE:
√ Excellent chemical resistance
√ Large temperature range
√ Hydrophobic
√ Very low coefficient of friction
√ Greatest resistance to fatigue
√ Non-flammable
√ FDA approved
√ Low dielectric constant
