Description

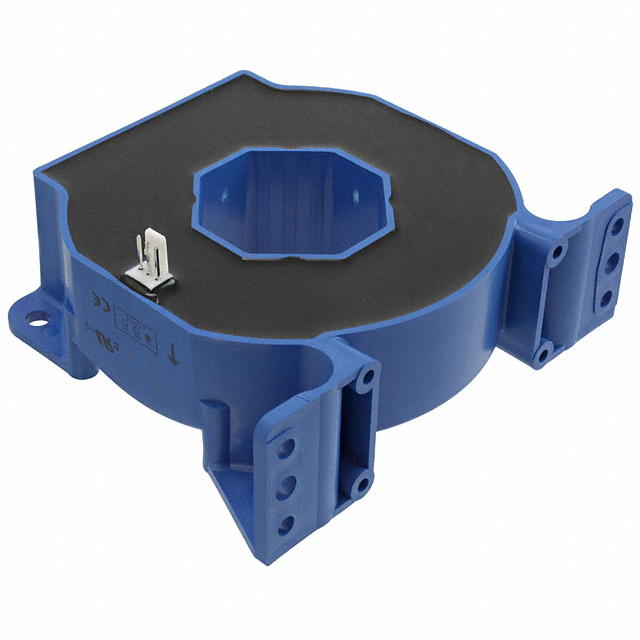

LF 1005-S/SP21 LEM Bidirectional Hall Effect, Closed Loop AC/DC Current Sensor ±15V ~ 24V 228mA ±0.4% 1µs Ratiometric, Current Module Chassis Mount
Sensor Type: Hall Effect, Closed Loop
For Measuring: AC/DC
Current – Sensing: 1000A
Accuracy: ±0.4%
Sensitivity:Ratiometric, Current
Supply Current (Max): 228mA
Supply Voltage: ±15V ~ 24V
Response Time: 1µs
Polarization: Bidirectional
Number of Channels: 1
Frequency: DC ~ 150kHz
Linearity: ±0.1%
Package / Case: Module
Mounting Type: Chassis Mount
Manufacturer Part Number: LF 1005-S/SP21
Manufacturer: LEM USA Inc.
Datasheet: lf 1005-s e.pdf
