Description

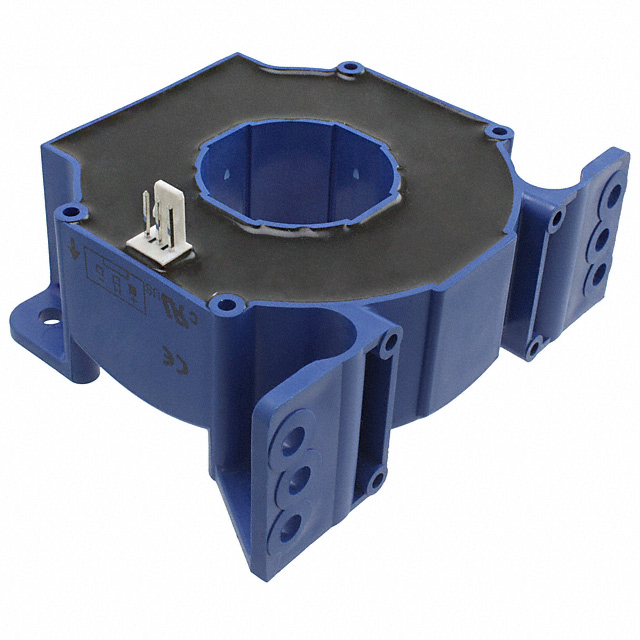

LF 505-S LEM Bidirectional Hall Effect, Closed Loop AC/DC Current Sensor ±15V ~ 24V 124mA ±0.6% 1µs Ratiometric, Current Module Chassis Mount
Sensor Type: Hall Effect, Closed Loop
For Measuring: AC/DC
Current – Sensing: 500A
Accuracy: ±0.6%
Sensitivity:Ratiometric, Current
Supply Current (Max): 124mA
Supply Voltage: ±15V ~ 24V
Response Time: 1µs
Polarization: Bidirectional
Number of Channels: 1
Frequency: DC ~ 100kHz
Linearity: ±0.1%
Package / Case: Module
Mounting Type: Chassis Mount
Manufacturer Part Number: LF 505-S
Manufacturer: LEM USA Inc.
Datasheet: lf 505-s e.pdf
