Description

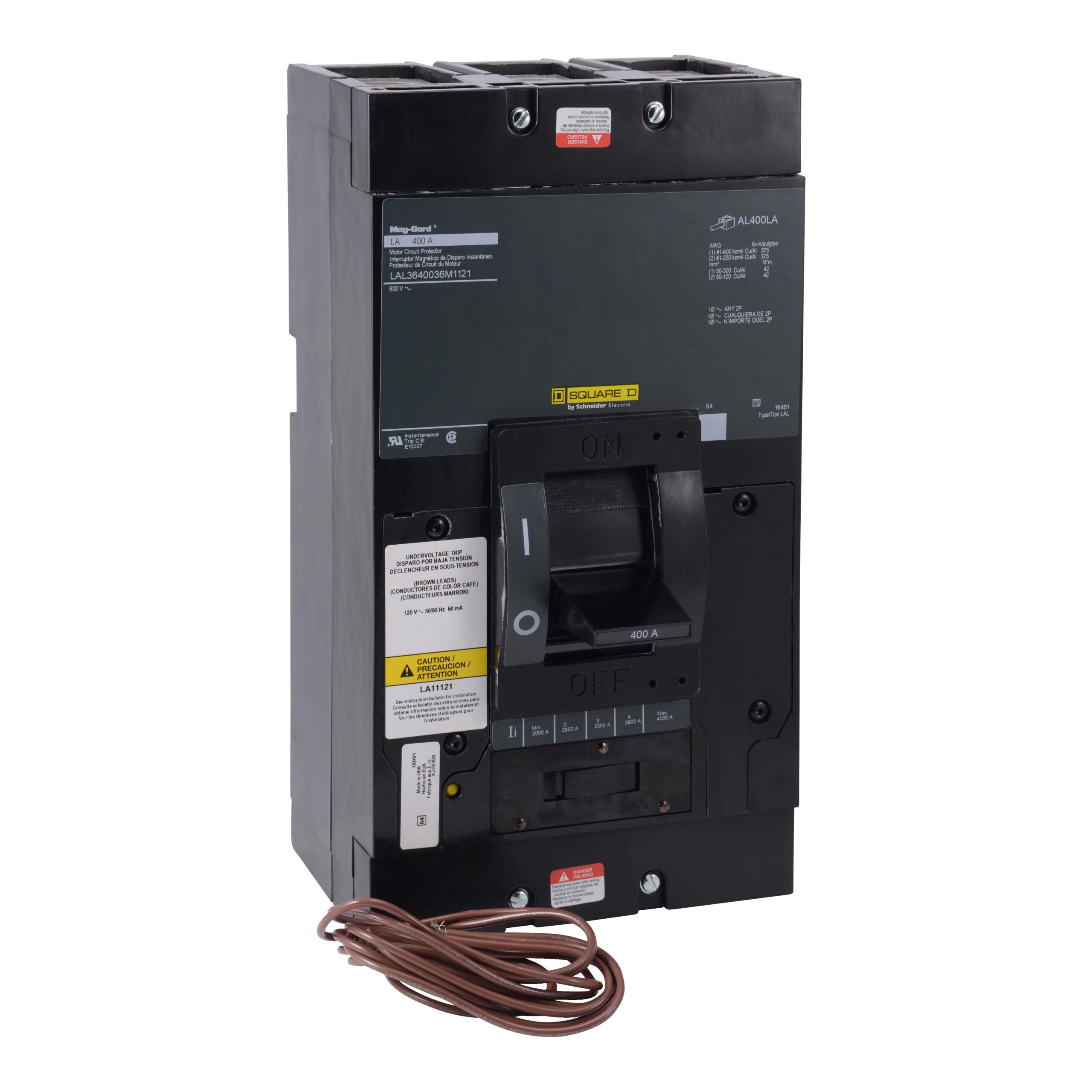

LHL3640036M Square D™ PowerPact™ Motor Circuit Protector, 600 V AC/250 V DC, 400 A, 25 kA at 600 VAC/35 kA at 480 VAC/65 kA at 240 VAC Interrupt, 3 Poles, Thermal Magnetic Trip Chassis Mount Lever 3-Poles
Square D LA magnetic only molded case circuit breakers (Mag-Gard) provide motor circuit protection. They are designed as disconnect devices for use in combination with motor starts. They are magnetic detection so provide short circuit protection only. This Square D LA Mag-Gard is 3 pole unit mount, 400A and 600VAC, with lugs. Mag-Gard circuit breakers have an adjustable amperage pick up so can be set to open instantaneously to coordinate with the motor.
Current Rating: 400 AMPERE
Number of Poles: 3
Terminal Type: LINE/LOAD LUG
Size: 6 INCH W X 5.84 INCH D X 11 INCH H
Approval: UL, CSA, CE
Catalog Number: LHL3640036M
Brand Name: Mag-Gard[R]
Model: LHL
Type: MAGNETIC
Frame Type: L
Voltage Rating: 240 VAC, 480 VAC STAR/277 VAC, 480 VAC, 600 VAC STAR/347 VAC, 600 VAC AT 50/60 HZ (UL/CSA/NOM); 415 VAC AT 50/60 HZ (IEC); 250/500 VDC
Maximum AC Voltage Rating: 600 V
Maximum DC Voltage Rating: 500 V
CATALOG DESCRIPTION: MOTOR CIRCUIT PROTECTOR, LH, 400A, 3 POLE, 600VAC, 25KA, 250VDC, 50KA, LUGS, MAGNETIC
Category: 3 Pole Non-Interchangeable Trip Thermal Magnetic Circuit Breakers
Full Size Image
Full Technical Description: Magnetic Type; 6 Inch W X 5.84 Inch D X 11 Inch H Size; 600 V Max. AC Voltage Rating; 500 V Max. DC Voltage Rating; UL, CSA, CE Approval; 240 VAC, 480 VAC Star/277 VAC, 480 VAC, 600 VAC Star/347 VAC, 600 VAC at 50/60 Hz (Ul/Csa/Nom); 415 VAC at 50/60 Hz (IEC); 250/500 VDC Voltage Rating; 400 Ampere Current Rating; 3 Pole(S); Line/Load Lug Terminal Type; L Frame Type; MAG-GARD[R] Brand; LHL Model
Manufacturer: Square D Co.
Breaker Type: Manual Motor Controller
Mounting Type: Chassis Mount
Number of Poles: 3
Illumination: 3
Actuator Type: Lever
VoltageRating: – AC
Current Rating: 400A (Amps)
Package: Box
