Description

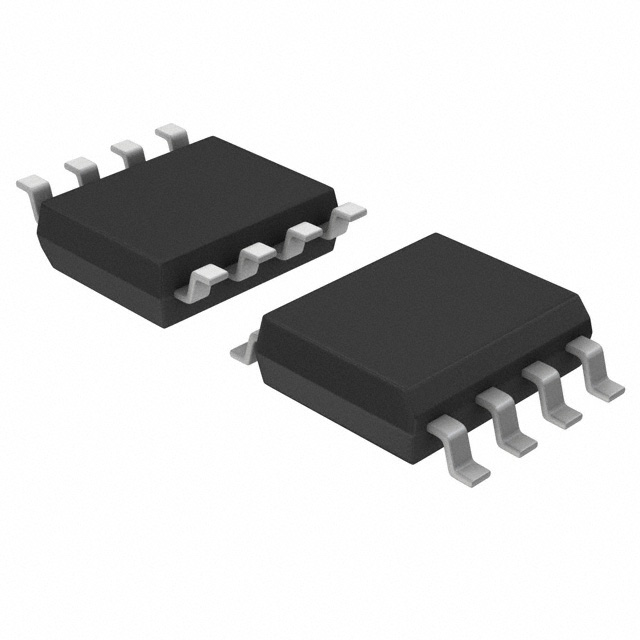

Linear Technology LTC1147CS8-5 IC DC Controller Single Output Step Down 3.5 Volt to 16 Volt 8 Pin SOIC N
| Specification | Value |
|---|---|
| Family | LTC1147 |
| Mounting | Surface Mount |
| Pin_Count | 8 |
| Supplier_Package | SOIC N |
| Product Height | 1.5mm(Max) |
| Product Length | 5mm(Max) |
| Product Width | 3.99mm(Max) |
| Product Type | DC to DC Controller |
| Type | Step Down |
| Number of Outputs | 1 |
| Input Voltage | 3.5V to 16V |
| Output Current | 0.05A(Max) |
| Output Voltage | 3.33V |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | 70°C |
| Screening Level | Commercial |
The LTC ® 1147 series are step-down switching regulator controllers featuring automatic Burst Mode TM operation to maintain high efficiencies at low output currents. These devices drive an external P-channel power MOSFET at switching frequencies exceeding 400kHz using a constant off-time current mode architecture providing constant ripple current in the inductor.
Manufacturer:Linear Technology
Datasheet:1147fds.pdf
