Description

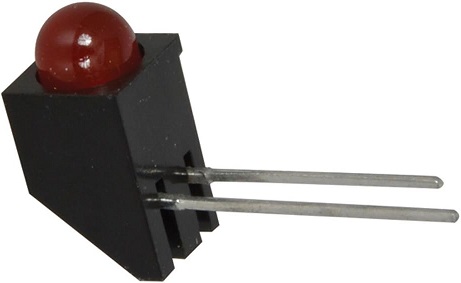

LITE ON LTL503-11 Right Angle Red Diffused LED 655nm 2-Pin Through Hole
Specifications
EU RoHS Compliant
Type Uni-Color
Product Category Standard LED
Mounting Orientation Right Angle
Color Red
Intensity 1.1mcd
Peak Wavelength (nm) 655
High Brightness No
Lens Appearance Colored Diffused
Viewing Angle (°) 60
Lens Shape Type Circular
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 100
Dominant Wavelength (nm) 651
Lens Dimensions (mm) 4.8×4.8×3.3
Number of LEDs 4
High Power No
Test Current (mA) 10
Maximum Forward Current (mA) 40
Maximum Forward Voltage per Color (V) 2
Maximum Power Dissipation (mW) 80
Reverse Voltage (V) 5
Supplier Color Red
Mounting Through Hole
Package Height (mm) 6
Package Length (mm) 6
Package Width (mm) 12.6
PCB changed 2
Pin Count 2
Manufacturer:Lite-On
Datasheet:LITES02974-1.pdf
