Description

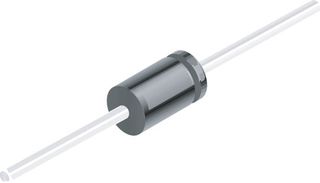

Littelfuse P6KE43CA Transient Voltage Supressor Diode (TVS) TVS Diode, TVS, P6KE Series, Bidirectional, 36.8 V, 59.3 V, DO-15, 2 Pins
The P6KE Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
- Halogen-Free and RoHS compliant
- Typical maximum temperature coefficient ΔVBR = 0.1% × VBR@25°C
- Glass passivated junction
- 600W peak pulse capability at 10×1000μs waveform, repetition rate (duty cycles):0.01%
- Fast response time: typically less than 1.0ps from 0 Volts to BV min
- Excellent clamping capability
- Low incremental surge resistance
- Typical IR less than 1μA above 13V
- High temperature soldering guaranteed: 265°C./10 seconds/ 0.375â€,(9.5mm) lead length, 51bs., (2.3kg) tension
- Plastic package has Underwriters Laboratory Flammability classification 94V-O
- Matte Tin Lead–free plated
Manufacturer:Littelfuse
Datasheet:Littelfuse/TVS_Diode_P6KE_Datasheet.pdf.pdf
