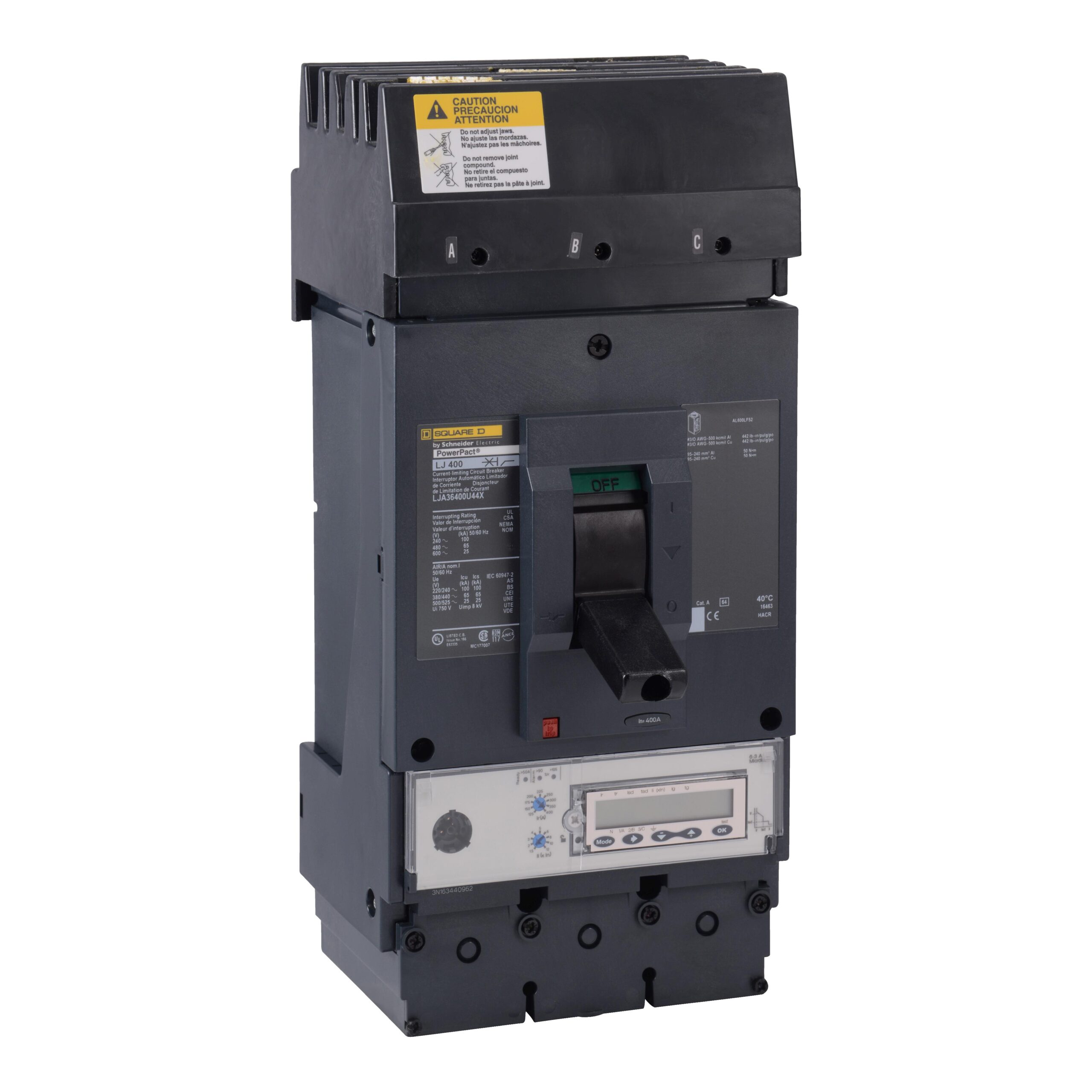

LJA36600U44X SquareD Circuit Breaker

LJA36600U44X SquareD Circuit Breaker 600V 600A 3-Poles

Please call 800-717-6475 to check current stock and pricing.

LJA36600U44X Square D / Schneider Circuit breaker 600 A 3P 80 % I-Line CSA 22-2, CCC, IEC, CE, UL 489, NMX, NEMA PowerPact L 11.3 in (287.02 mm 5.5 in (139.70 mm 6.61 in (167.89 mm I-Line connection line, Busbar connection load Current limiter ABC 100 kA 240 V AC, 65 kA 480 V AC, 25 kA 600 Toggle

Description

LJA36600U44X Schneider Electric Molded Solid State Circuit Breaker 600V 600A DIN Rail Toggle 3-Poles CSA, UL
The SquareD LJA36600U44X is a 3 Pole solid state molded case circuit breaker with a current rating of 600 Amps and a voltage rating of 600VAC. It has an interrupting rating of 100kAIC at 240VAC, 65kAIC at 480V, 25kAIC at 600VAC. The LJA36600U44X has a I-Line bracket mounting type and includes LSIG – long-time, short-time, instantaneous and ground fault functions.
Specifications
Poles (Molded Case Breaker)
Three Pole
Interrupt Code (Molded Case Breaker)
J Interrupt Rating
Frame Type (Molded Case Breaker)
L Frame
Amperage (Molded Case Breaker)
600 Amp
Maximum Voltage (Molded Case Breaker)
600 VAC
UL Listing (Molded Case Breaker)
UL 489
Mounting (Molded Case Breaker)
I-Line
Manufacturer
Schneider Electric
Manufacturer
Square D
Component
Molded Case Circuit Breaker
Interrupt Rating (Molded Case Breaker)
65 Ka 480 Volt
Interrupt Rating (Molded Case Breaker)
25 Ka 600 Volt
Interrupt Rating (Molded Case Breaker)
100 Ka 240 Volt
Breaker Type: Solid State
Mounting Type: DIN Rail
Number of Poles: 3
Illumination: 3
Actuator Type: Toggle
VoltageRating: 600V AC
Current Rating: 600A (Amps)
Package: Box
