Description

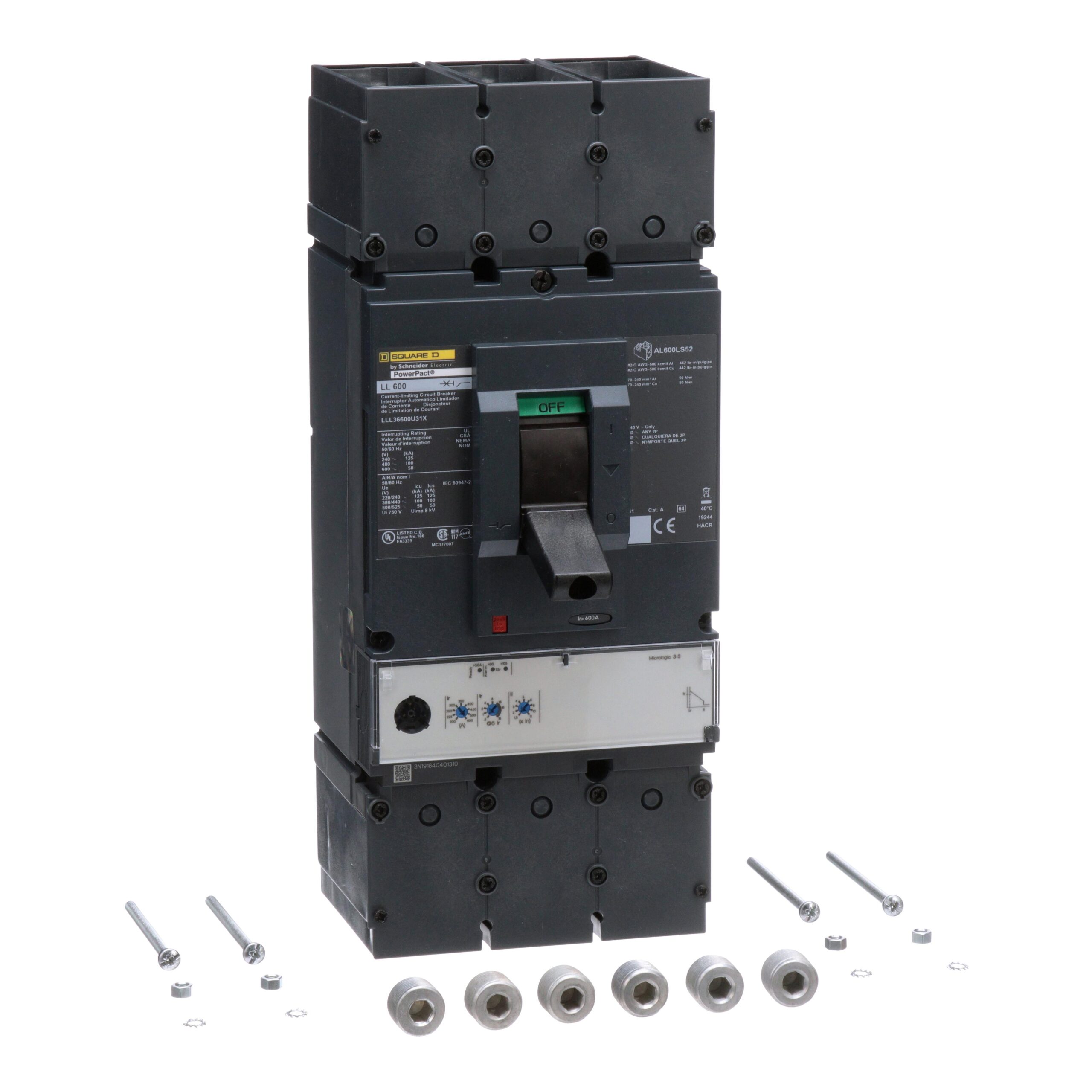

LLL36600U31X Schneider Electric Molded Solid State Circuit Breaker 600V 600A Chassis Mount Toggle 3-Poles CSA, UL Molded Case, Electronic Trip Type; 5.51 Inch W X 4.33 Inch D X 13.38 Inch H Size; 600 V Max. AC Voltage Rating; UL, CSA Approval; 240/480/600 VAC at 50/60 Hz, 480 VAC Star/277 VAC at 50/60 Hz, 600 VAC Star/347 VAC at 50/60 Hz (Ul/Csa/Nom)
Amps 600 Amp
Breaker Interrupt Rating 1 125KA @ 240VAC
Breaker Interrupt Rating 2 100KA @ 480VAC
Breaker Interrupt Rating 3 50KA @ 600VAC
Breaker Line Side Term Method Lugs
Breaker Load Side Term Method Lugs
Category Circuit Breakers, Square D by Schneider Electric
Circuit Breaker Type PowerPact Molded Case Circuit Breaker
Electronic Trip Type Micrologic Std, LI
Frame L-Frame
Height 10
Length 20
Manufacturer Square D by Schneider Electric
Maximum Interrupt Rating 50KA @ 600VAC
Number of Poles 3 Pole
Product Description 600Volt, 600Amp, 3-Pole
Trip Type Electronic
UNSPSC 39121616
UPC 785902000000
Volts 600V
Width 11.5
Breaker Type: Solid State
Mounting Type: Chassis Mount
Number of Poles: 3
Illumination: 3
Actuator Type: Toggle
VoltageRating: 600V AC
Current Rating: 600A (Amps)
Package: Box
