Description

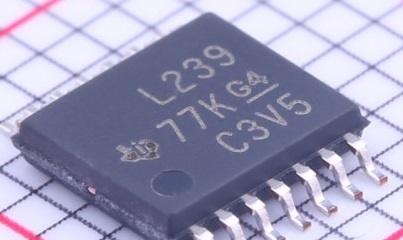

LM239PWR Texas Instruments Analog Comparators Quad Differential Comparator CMOS, MOS, Open-Collector, 3-28V TTL 14-TSSOP RoHS
The Texas Instruments LM139, LM239, LM339 and LM2901 are quad differential input voltage comparators designed to operate from a single power supply over a wide range of voltages. The common mode input voltage range includes ground and the devices have open collector outputs.
Specifications
Manufacturer:Texas Instruments
Product Category:Analog Comparators
Mounting Style:SMD/SMT
Package / Case:TSSOP-14
Number of Channels:4 Channel
Output Type:Rail-to-Rail
Response Time:300 ns
Comparator Type:Differential
Supply Voltage – Min:2 V
Supply Voltage – Max:30 V
Operating Supply Current:500 uA
Output Current per Channel:6 mA
Vos – Input Offset Voltage:2 mV
Ib – Input Bias Current:250 nA
Minimum Operating Temperature:- 25 C
Maximum Operating Temperature:+ 85 C
Series:LM239
Packaging:Cut Tape
Packaging:Reel
Features:Standard comparator
Height:1 mm
Length:5 mm
Product:Analog Comparators
Supply Type:Single, Dual
Technology:Bipolar
Type:Differential Comparator
Width:4.4 mm
Brand:Texas Instruments
Shutdown:No Shutdown
Dual Supply Voltage:+/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V
GBP – Gain Bandwidth Product:-
Maximum Dual Supply Voltage:+/- 15 V
Minimum Dual Supply Voltage:1 V
Operating Supply Voltage:2 V to 30 V
Product Type:Analog Comparators
Reference Voltage:Yes
Factory Pack Quantity:2000
Subcategory:Amplifier ICs
Voltage Gain dB:106.02 dB
Unit Weight:0.006702 oz
Manufacturer: Texas Instruments
MFG Part #: LM239PWR
