Description

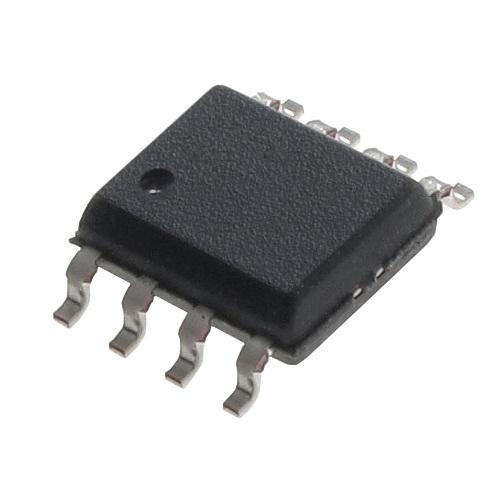

LM258DR Texas Instruments Operational Amplifier – Op Amps Channels: 2 3-32V 350uA 8-SOIC RoHS
Specifications
Manufacturer:Texas Instruments
Product Category:Operational Amplifiers – Op Amps
Mounting Style:SMD/SMT
Package / Case:SOIC-8
Number of Channels:2 Channel
Supply Voltage – Max:32 V
GBP – Gain Bandwidth Product:700 kHz
Output Current per Channel:30 mA
SR – Slew Rate:0.3 V/us
Vos – Input Offset Voltage:5 mV
Supply Voltage – Min:3 V
Minimum Operating Temperature:- 25 C
Maximum Operating Temperature:+ 85 C
Ib – Input Bias Current:150 nA
Operating Supply Current:350 uA
Shutdown:No Shutdown
CMRR – Common Mode Rejection Ratio:70 dB to 80 dB
en – Input Voltage Noise Density:40 nV/sqrt Hz
Series:LM258
Packaging:Cut Tape
Packaging:Reel
Amplifier Type:High Gain Amplifier
Height:1.58 mm
Input Type:Rail-to-Rail
Length:4.9 mm
Product:Operational Amplifiers
Supply Type:Single, Dual
Technology:Bipolar
Width:3.91 mm
Brand:Texas Instruments
Dual Supply Voltage:+/- 3 V, +/- 5 V, +/- 9 V
Maximum Dual Supply Voltage:+/- 16 V
Minimum Dual Supply Voltage:+/- 1.5 V
Operating Supply Voltage:3 V to 32 V, +/- 1.5 V to +/- 16 V
Product Type:Op Amps – Operational Amplifiers
Factory Pack Quantity:2500
Subcategory:Amplifier ICs
Vcm – Common Mode Voltage:Negative Rail to Positive Rail – 1.5 V
Voltage Gain dB:100 dB
Unit Weight:0.002561 oz
Manufacturer: Texas Instruments
MFG Part #: LM258DR
