Description

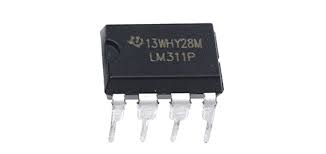

LM311P Texas Instruments Analog Comparators Diff 3.5V 7.5mA DTL, MOS, Open-Collector, Open-Emitter, RTL, TTL 8-PDIP RoHS
Specifications
Manufacturer: Texas Instruments
Product Category: Analog Comparators
Mounting Style: Through Hole
Package / Case: PDIP-8
Number of Channels: 1 Channel
Output Type: Open Collector, Open Drain
Response Time: 115 ns
Comparator Type: Differential
Supply Voltage – Min: 3.5 V
Supply Voltage – Max: 30 V
Operating Supply Current: 7.5 mA
Output Current per Channel: 50 mA
Vos – Input Offset Voltage: 7.5 mV
Ib – Input Bias Current: 250 nA
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Series: LM311
Packaging: Tube
Features: Strobe, Vos Adj Pin
Height: 4.57 mm
Length: 9.81 mm
Product: Analog Comparators
Supply Type: Single, Dual
Technology: Bipolar
Type: Voltage Comparator
Width: 6.35 mm
Brand: Texas Instruments
Shutdown: No Shutdown
Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V
GBP – Gain Bandwidth Product: –
Ios – Input Offset Current: 50 nA
Maximum Dual Supply Voltage: +/- 15 V
Minimum Dual Supply Voltage: 1.75 V
Operating Supply Voltage: 3.5 V to 30 V
Product Type: Analog Comparators
Reference Voltage: No
Factory Pack Quantity: 50
Subcategory: Amplifier ICs
Vcm – Common Mode Voltage: 0.5 V
Voltage Gain dB: 106.02 dB
Unit Weight: 0.015873 oz
Manufacturer: Texas Instruments
MFG Part #: LM311P
