Description

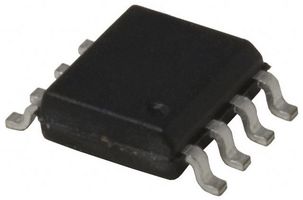

LM8272MM/NOPB Texas Instruments OP AMP, 13MHZ, 12V/uS, SOIC-8, FULL REEL, No. of Amplifiers:1 Amplifier, Bandwidth:13MHz, Slew Rate:12V/us, Supply Voltage Range:2.5V to 24V, Amplifier Case Style:VSSOP, No. of Pins:8Pins, Operating Temperature Min:-40C , RoHS Compliant
Specifications
Manufacturer: Texas Instruments
Product Category: Operational Amplifiers – Op Amps
Mounting Style: SMD/SMT
Package / Case: MSOP-8
Supply Voltage – Max: 24 V
Output Current per Channel: 65 mA
Number of Channels: 2 Channel
GBP – Gain Bandwidth Product: 13 MHz
SR – Slew Rate: 12 V/us
CMRR – Common Mode Rejection Ratio: 64 dB to 80 dB
Ib – Input Bias Current: 2 uA
Vos – Input Offset Voltage: 5 mV
Supply Voltage – Min: 2.5 V
Operating Supply Current: 900 uA
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 85 C
Shutdown: No Shutdown
Series: LM8272
Packaging: Cut Tape
Packaging: Reel
Features: High Cload Drive
Height: 0.86 mm
Input Type: Rail-to-Rail
Length: 3 mm
Output Type: Rail-to-Rail
Product: Operational Amplifiers
Supply Type: Single, Dual
Width: 3 mm
Brand: Texas Instruments
Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V
en – Input Voltage Noise Density: 15 nV/sqrt Hz at 5 V
In – Input Noise Current Density: 1.4 pA/sqrt Hz
Maximum Dual Supply Voltage: +/- 12 V
Minimum Dual Supply Voltage: +/- 1.25 V
Operating Supply Voltage: 3 V, 5 V, 9 V, 12 V, 15 V, 18 V
Product Type: Op Amps – Operational Amplifiers
PSRR – Power Supply Rejection Ratio: 78 dB
Factory Pack Quantity: 1000
Subcategory: Amplifier ICs
Vcm – Common Mode Voltage: 2.5 V to 24 V
Voltage Gain dB: 80 dB
Unit Weight: 0.000935 oz
Manufacturer Part Number: LM8272MM/NOPB
Manufacturer: Texas Instruments
