Description
AMETHERM LPTC83-110 LPTC THERMISTOR, 1000Ω @ 25C, 0.52C from 0C to 70C, 3.423 mW / C minimum, Lead free / RoHS: Compliant

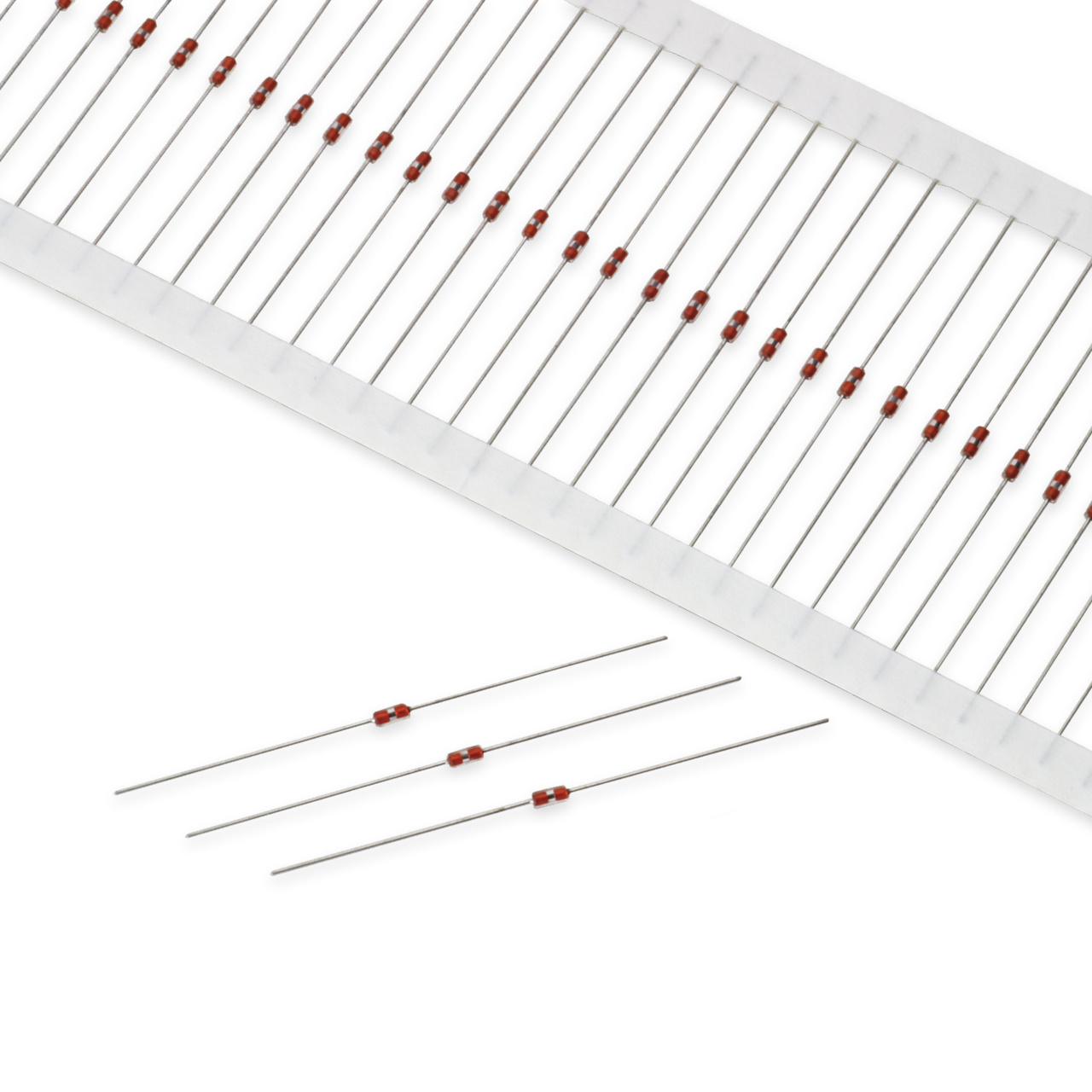

LPTC Linear Positive Temperature Coefficient Series PTC Thermistor
LPTC series products are axial lead glass package
The host matrix material is a semiconductor silicon single crystal, also known as a silicon thermistor
Resistance value increases linearly with increasing temperature, also known as linear positive temperature coefficient
Thermistor
Dissipation coefficient: 2.5 ? 5mW / C
Maximum working current: Iopr = 1.0mA
Stability: annual change rate ≤0.01 C / year
Temperature coefficient: α25 / 50≥0.7% / C
Rated power: 10mW
Operating temperature range: -50 to + 190 ° C
Small size, sturdy structure, easy for automatic installation
Glass encapsulated for use in harsh environments such as high temperature and humidity
Application range
Automotive industry temperature detection and control
2. Temperature detection and control of household appliances
3. Precision circuit and crystal oscillator temperature compensation
4. Micro-motor speed control, motor overheating protection
Ametherm provides high quality inrush current limiting solutions to protect components from damaging levels of inrush current at startup. Ametherm’s commitment to innovative design, quality manufacturing, and exceptional customer support ensures the best solution for inrush current limiting applications.
Ametherm, headquartered in Carson City, Nevada, was founded in 1994 and specializes in inrush current limiting power thermistors for circuit protection in the power market industry.
Ametherm is ISO certified, and Ametherm broad range of power thermistors are UL and CSA approved, providing the most reliable yet cost-effective inrush current limiting solutions available.
Manufacturer:Ametherm
Datasheet:LPTC83-110.pdf
