Description

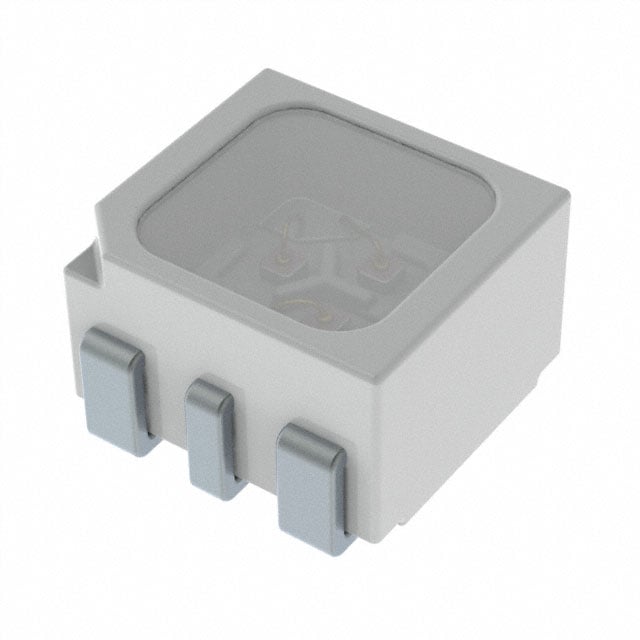

LRTBGVSR-4U4V-JW+8A8B-D8-3S4U-7Z Osram Red, Green, Blue (RGB) LED 2.05V Red, 2.6V Green, 2.85V Blue 20mA Red, 20mA Green, 20mA Blue 810mcd Red, 2195mcd Green, 467mcd Blue, White 626nm Red, 528nm Green, 465nm Blue-632nm Red, 523nm Green, 455nm Blue Surface Mount 6-SMD, J-Lead
Series: OSIRE® E3635
Color: Red, Green, Blue (RGB)
Lens Color: White
Lens Transparency:
Lens Style: Oval with Flat Top
Lens Size: 3.10mm x 2.80mm
Voltage Forward (Vf) (Typ): 2.05V Red, 2.6V Green, 2.85V Blue
Current: 20mA Red, 20mA Green, 20mA Blue
Mounting Type: Surface Mount
Dominant Wavelength: 626nm Red, 528nm Green, 465nm Blue
Peak Wavelength: 632nm Red, 523nm Green, 455nm Blue
Configuration:
Size / Dimension: 3.30mm L x 4.20mm W
Height (Max): 2.00mm
Device Package: 6-PLCC
