Description

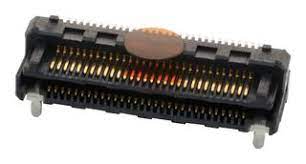

LSHM-130-01-L-DH-A-S-K-TR Samtec Connector Socket and Terminal Strip Header 60 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount, Right Angle Gold RoHS
Specifications
Manufacturer: Samtec
Product Category: Board to Board & Mezzanine Connectors
Product: Hermaphroditic Connectors
Number of Positions: 60 Position
Pitch: 0.5 mm
Number of Rows: 2 Row
Termination Style: Solder
Mounting Angle: Right Angle
Current Rating: 1.9 A
Maximum Data Rate: 16 Gbps
Minimum Operating Temperature: – 55 C
Maximum Operating Temperature: + 125 C
Contact Plating: Gold
Contact Material: Phosphor Bronze
Housing Material: Liquid Crystal Polymer (LCP)
Series: LSHM
Packaging: Cut Tape
Packaging: Reel
Application: Power, Signal
Brand: Samtec
Flammability Rating: UL 94 V-0
Mounting Style: Board Lock
Product Type: Board to Board & Mezzanine Connectors
Factory Pack Quantity: 100
Subcategory: Board to Board & Mezzanine Connectors
Tradename: Razor Beam
Unit Weight: 0.162703 oz
Manufacturer: Electronic Components
MFG Part #: LSHM-130-01-LDHASKTR
