Description

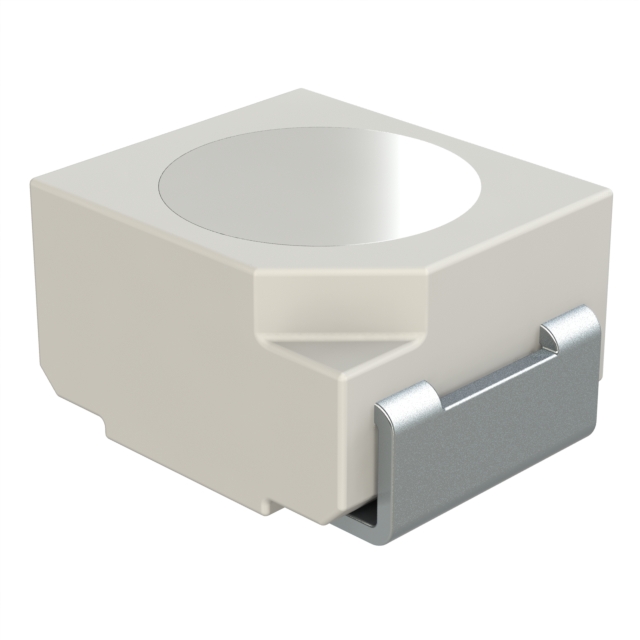

LT TTSD-T2V2-36-1 Osram Standard Green LED 3.1V 10mA Clear 738mcd, Colorless 525nm-520nm Surface Mount 2-PLCC
Series: TOPLED®
Color: Green
Lens Color: Colorless
Lens Transparency: Clear
Lens Style: Round with Flat Top
Lens Size: 2.40mm Dia
Voltage Forward (Vf) (Typ): 3.1V
Current: 10mA
Mounting Type: Surface Mount
Dominant Wavelength: 525nm
Peak Wavelength: 520nm
Configuration: Standard
Size / Dimension: 3.20mm L x 2.80mm W
Height (Max): 2.10mm
Device Package: 2-PLCC
