Description

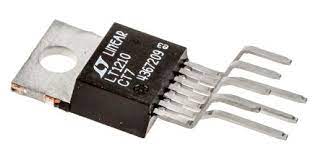

Analog Devices LT1210CT7#PBF Linear Technology Special Purpose Amplifier Op Amp Single High Voltage Amplifier 15V 7-Pin(7+Tab) TO-220 Tube RoHS
Specifications
Manufacturer: Analog Devices Inc.
Product Category: Operational Amplifiers – Op Amps
Mounting Style: Through Hole
Package / Case: Through Hole
Number of Channels: 1 Channel
Supply Voltage – Max: 36 V
GBP – Gain Bandwidth Product: 35 MHz
Output Current per Channel: 2 A
SR – Slew Rate: 900 V/us
Vos – Input Offset Voltage: 3 mV
Supply Voltage – Min: 8 V
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Operating Supply Current: 35 mA
Shutdown: Shutdown
CMRR – Common Mode Rejection Ratio: 62 dB
en – Input Voltage Noise Density: 3 nV/rtHz
Series: LT1210
Packaging: Tube
Amplifier Type: Video Amplifier
Height: 4.57 mm
Brand: Analog Devices
In – Input Noise Current Density: 2 pA/rtHz
Maximum Input Resistance: 10 mOhms
Product Type: Op Amps – Operational Amplifiers
PSRR – Power Supply Rejection Ratio: 77 dB
Factory Pack Quantity: 50
Subcategory: Amplifier ICs
Voltage Gain dB: 71 dB
Unit Weight: 0.071994 oz
Manufacturer:Linear Technology
Datasheet:lt1210.pdf
