Description

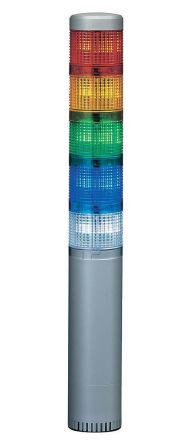

Patlite LU5 Series
The LU5 series has been designed to be extremely versatile and suitable for many possible applications thanks to its IP65 rating. It features an easy assembly and wiring design reducing instillation time and maintenance helping to reduce costs.
Features:
Patlites exclusive hybrid prism-cut lens designed for enhanced visibility from any direction and distance.
Two built-in alarms (FB Type) with selectable sound patterns
Maximum volume of up to 85dB (at 1m)
Direct or pole mount installation
Colour-coordinated terminal block corresponding to the lens colours for quick wiring
Interchangeable LED Modules requires no re-wiring, even after installation
Lens is made of superior impact and heat resistant polycarbonate
Add product to Compare
Close
Specifications
Series LU5
Component Type LED Signal Tower
Multifunction Yes
Current Type DC
Light Effect Flashing
Lamp Included Yes
Bulb Type LED
Supply Voltage 24 V dc
Maximum Decibel 85dB
Height 211mm
Base Diameter 50mm
Maximum Temperature +60C
IP Rating IP65
Minimum Temperature -30C
Housing Colour Silver
Manufacturer Part Number: LU5-02UFB
Manufacturer: Electronic Components
