Description

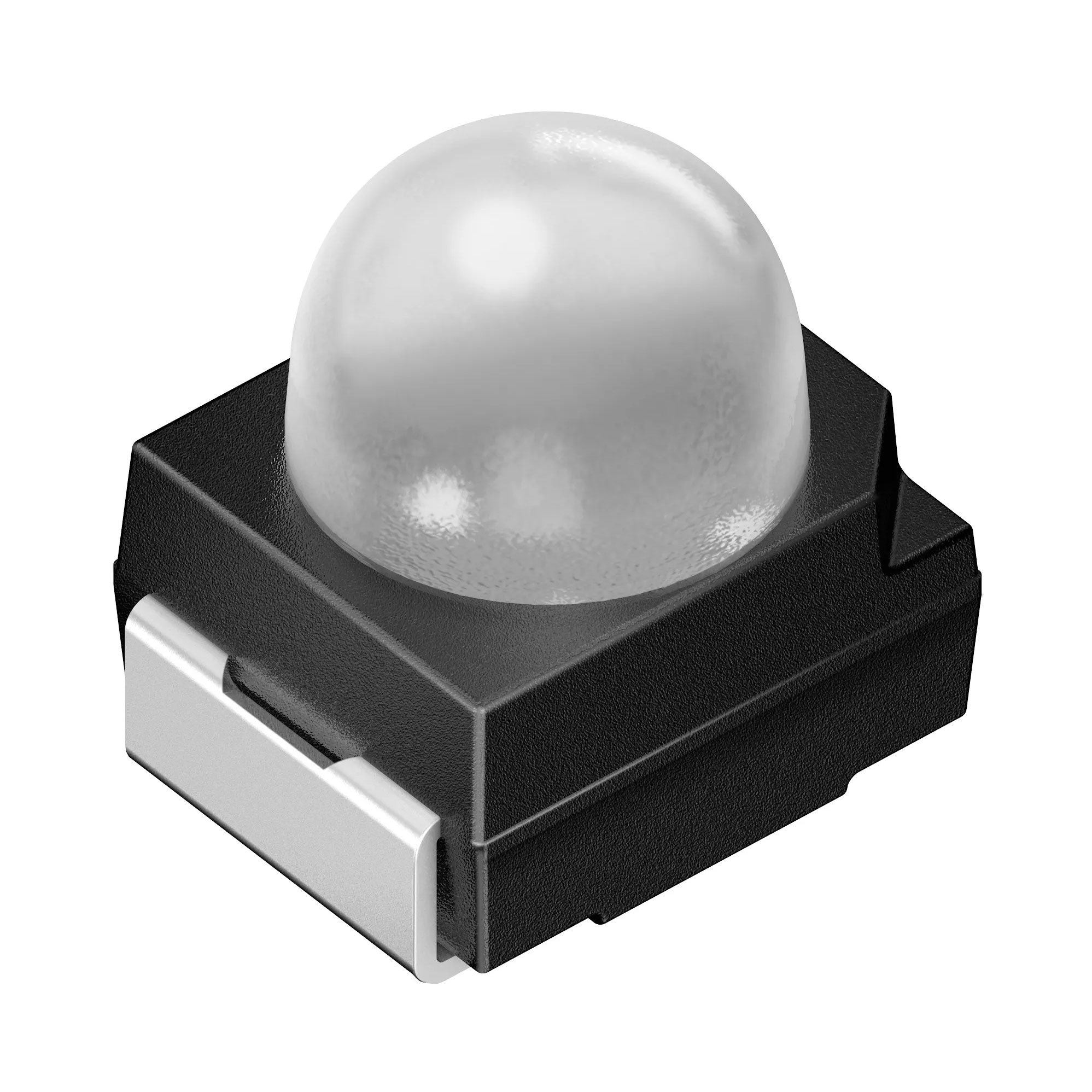

LV T64G-DBFA-25-N424-20-R33-Z Osram Independent Green LED 2.6V 20mA Diffused 6150mcd, Colorless 505nm-504nm Surface Mount 2-PLCC
Series: TOPLED® Black
Color: Green
Lens Color: Colorless
Lens Transparency: Diffused
Lens Style: Round with Domed Top
Lens Size: 2.55mm Dia
Voltage Forward (Vf) (Typ): 2.6V
Current: 20mA
Mounting Type: Surface Mount
Dominant Wavelength: 505nm
Peak Wavelength: 504nm
Configuration: Independent
Size / Dimension: 3.20mm L x 2.80mm W
Height (Max): 3.65mm
Device Package: 2-PLCC
