Description

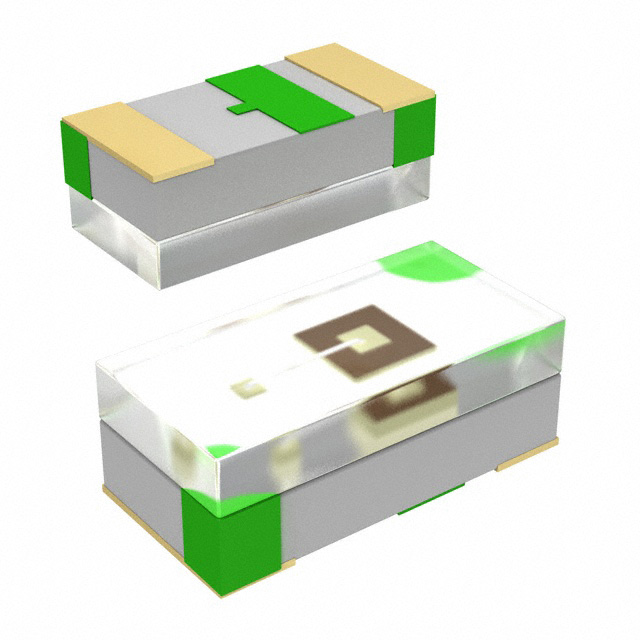

LW QH8G-Q2OO-3K5L-1-5-R18 Osram Standard White, Cool LED 2.8V 5mA Diffused 185mcd, White 5600K– Surface Mount 0402 (1005 Metric)
Series: CHIPLED 0402
Color: White, Cool
Lens Color: White
Lens Transparency: Diffused
Lens Style: Rectangle with Flat Top
Lens Size: 1.00mm x 0.80mm
Voltage Forward (Vf) (Typ): 2.8V
Current: 5mA
Mounting Type: Surface Mount
Dominant Wavelength: 5600K
Peak Wavelength: –
Configuration: Standard
Size / Dimension: 1.00mm L x 0.50mm W
Height (Max): 0.40mm
Device Package: 0402
