Description

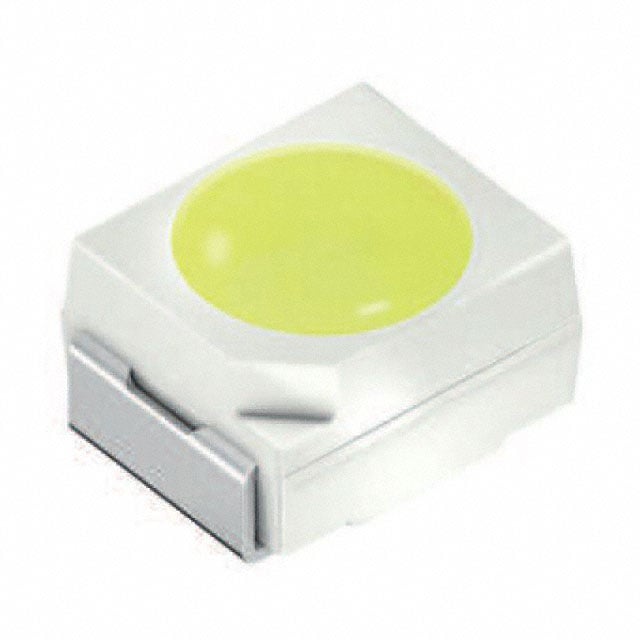

LW TVSG.BB-AZBZ-FBKC-Z486-20-R18-Z Osram Standard White LED 3.05V 20mA Diffused 2150mcd, Yellow — Surface Mount 2-PLCC
Series: TOPLED®
Color: White
Lens Color: Yellow
Lens Transparency: Diffused
Lens Style: Round with Flat Top
Lens Size: 2.40mm Dia
Voltage Forward (Vf) (Typ): 3.05V
Current: 20mA
Mounting Type: Surface Mount
Dominant Wavelength: –
Peak Wavelength: –
Configuration: Standard
Size / Dimension: 3.20mm L x 2.80mm W
Height (Max): 1.86mm
Device Package: 2-PLCC
