Description
LXML-PM01-0090 Lumileds LUXEON Rebel SMT High Power LED Emitter Green Lambertian 350 mA 3.05 V 90 lm Min
Specifications
Manufacturer: Lumileds
Product Category: High Power LEDs – Single Color
RoHS: Details
Package / Case: SMD-2
Illumination Color: Green
Wavelength/Color Temperature: 530 nm
Luminous Flux/Radiant Flux: 90 lm
Lens Color/Style: Water Clear
If – Forward Current: 350 mA
Vf – Forward Voltage: 2.9 V
Mounting Style: SMD/SMT
Length: 4.91 mm
Width: 3.17 mm
Height: 2.1 mm
Maximum Operating Temperature: + 135 C
Minimum Operating Temperature: – 40 C
Series: LUXEON Rebel Color
Packaging: Cut Tape
Packaging: Reel
Type: LUXEON Rebel Color
Brand: Lumileds
LED Size: 4.91 mm x 3.17 mm x 2.1 mm
Lens Shape: Dome
Viewing Angle: 125 deg
Factory Pack Quantity: 1000
Tradename: LUXEON
Part # Aliases: LXML-PM01-0050 LXML-PM01-0080

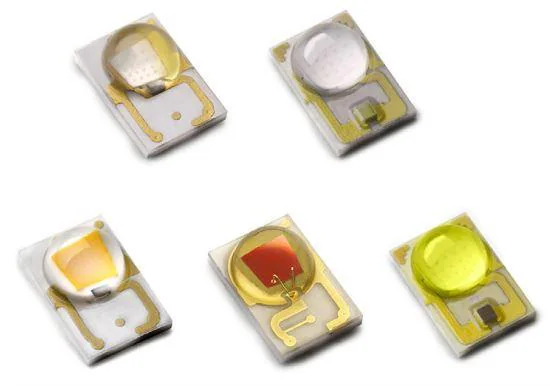

With LUXEON Rebel colored emitters you can create visually stunning and entertaining lighting applications. LUXEON Rebel emitters in green, cyan, blue, royal-blue, red, red-orange, and amber offer the light output, reliability and lumen maintenance that enable today’s most distinctive lighting applications.
Manufacturer:Electronic Components
Datasheet:DS68.pdf
