Description

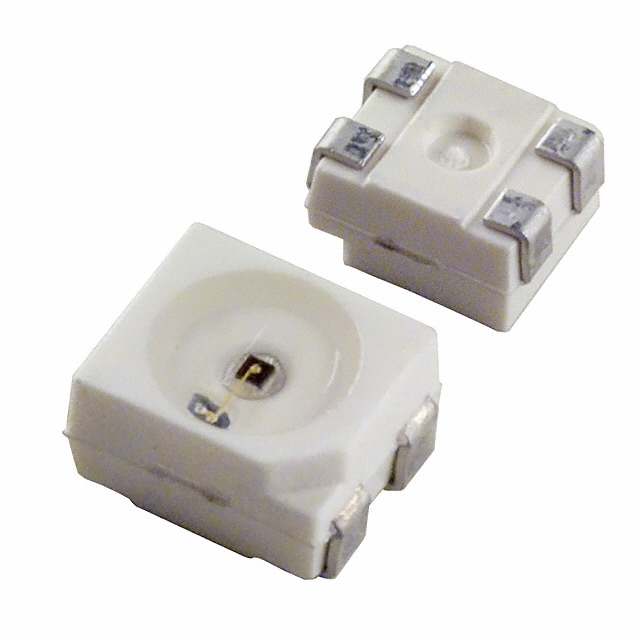

LY E67F-ABBB-46-1-Z Osram Standard Yellow LED 2.15V 50mA Clear 1960mcd, Colorless 593nm-593nm Surface Mount 4-PLCC
Series: Power TOPLED®
Color: Yellow
Lens Color: Colorless
Lens Transparency: Clear
Lens Style: Round with Flat Top
Lens Size: 2.40mm Dia
Voltage Forward (Vf) (Typ): 2.15V
Current: 50mA
Mounting Type: Surface Mount
Dominant Wavelength: 593nm
Peak Wavelength: 593nm
Configuration: Standard
Size / Dimension: 3.20mm L x 2.80mm W
Height (Max): 2.10mm
Device Package: 4-PLCC
