Description

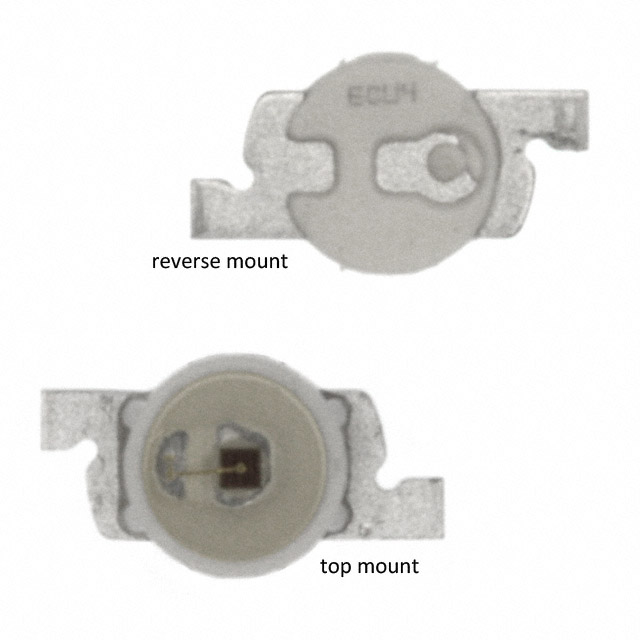

LY P47K-K1L2-26-0-2-R18-Z Osram Standard Yellow LED 1.8V 2mA Clear 12.55mcd, Colorless 587nm-591nm Surface Mount, Bottom Entry 2-SMD, Flat Leads
Series: PointLED®
Color: Yellow
Lens Color: Colorless
Lens Transparency: Clear
Lens Style: Round with Flat Top
Lens Size: 1.60mm Dia
Voltage Forward (Vf) (Typ): 1.8V
Current: 2mA
Mounting Type: Surface Mount, Bottom Entry
Dominant Wavelength: 587nm
Peak Wavelength: 591nm
Configuration: Standard
Size / Dimension: 3.40mm L x 1.90mm W
Height (Max): 0.88mm
Device Package: SMD
