Description

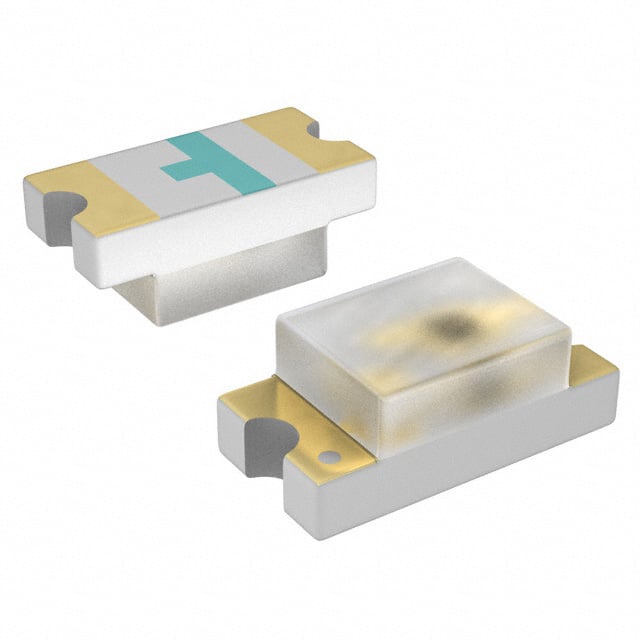

LY Q396-P1Q2-36-0-10-R18 Osram Standard Yellow LED 2V 10mA Diffused 79mcd, White 589nm– Surface Mount 2-SMD, Flat Leads
Series: CHIPLED 0603
Color: Yellow
Lens Color: White
Lens Transparency: Diffused
Lens Style: Rectangle with Flat Top
Lens Size: 1.00mm x 0.80mm
Voltage Forward (Vf) (Typ): 2V
Current: 10mA
Mounting Type: Surface Mount
Dominant Wavelength: 589nm
Peak Wavelength: –
Configuration: Standard
Size / Dimension: 1.60mm L x 0.80mm W
Height (Max): 0.40mm
Device Package: –
